OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C

Brand Name : Chitwing

Model Number : Phone Case

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 450 X 426

IMM Tonnage : 140T

Mold Weight : 470kg

Runner : Cold runner

Mould life : ≥500000 shots

Design software : 3D:UG 4.0, 2D:CAD

Mold base : Custom mold base

Gate type : Side gate

Contact Now

Transparent middle frame (1*1)

No.22448-C

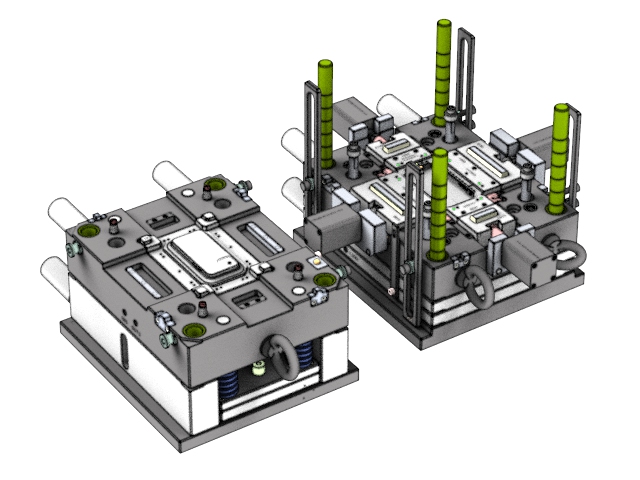

The mold has been meticulously engineered with a well-designed structure to ensure even pressure distribution and minimize the concentration of stress. It is expertly crafted using high-quality steel, featuring a hardened cavity and core that provide exceptional hardness and resistance to wear. With an impressive tool life, this mold can last for 5-10 years or withstand up to 50,000 shots.



OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C

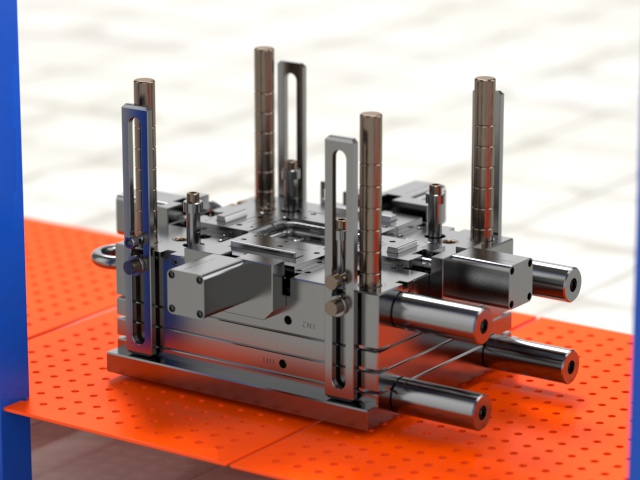

Additionally, this particular mold is designed with a customized mold base to perfectly accommodate specific needs. It is a three-plates mold equipped with a side gate, enabling efficient and accurate injection molding procedures. The mold strictly adheres to the LKM mold standard, ensuring exceptional quality and dependability. Measuring 400mm in length, 450mm in width, and 426mm in height, and weighing 470kg, this mold is a durable and sturdy tool.



OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C

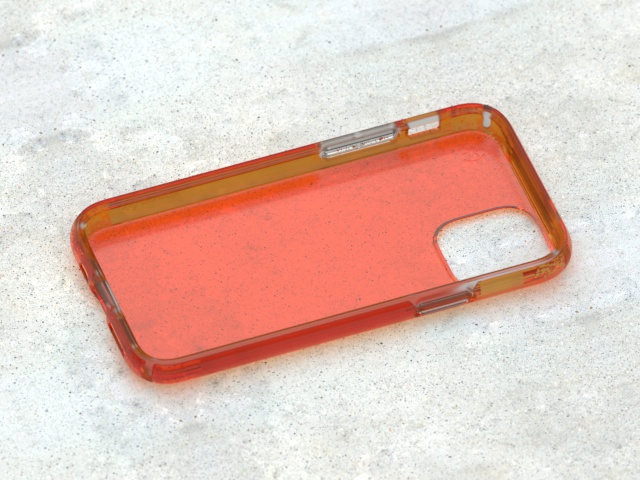

The mold is equipped with a smooth surface finish, meeting the strict SPI-A1 standards. It employs a cold runner injection/runner type, ensuring efficient material flow and minimizing wastage. Notably, it incorporates 4 slides (cylinders) and the cavity and core hardness surpasses 50HRC, ensuring precision and durability. This mold is specifically designed for TPE material injection molding, with an injection part size measuring 150.4mm in length, 78.5mm in width, and 11.8mm in height. The injection part has a weight of 10g, making it suitable for a wide range of applications.



OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C









OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C













Display diagram



OEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-COEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-COEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-COEM / ODM Insert Injection Molding Transparent Middle Frame (1*1) Mold Making No.22448-C
