Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448

Name: Transparent middle frame 11 Cold runner Threeplates mold No22448
Brand: Chitwing
Price: 1 USD

Buy cheap Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448 product

Brand Name : Chitwing

Model Number : Phone Case

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 450 X 426

IMM Tonnage : 140T

Mold Weight : 470kg

Runner : Cold runner

Mould life : ≥500000 shots

Design software : 3D:UG 4.0, 2D:CAD

Mold base : Custom mold base

Gate type : Side gate

Contact Now

Transparent middle frame (1*1)

No.22448

The mold has a reasonable structure to ensure uniform pressure and minimized stress concentration.

The tool life is up to 5-10 years (50 K shots). It is made from clean steel, with hardened cavity and core,

so that it has high hardness and anti-wearing performance.

Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448

Injection/Runner Type: Cold runner

Mold base	Custom mold base
Type	Three-plates mold
Gate	Side gate
Standard	LKM

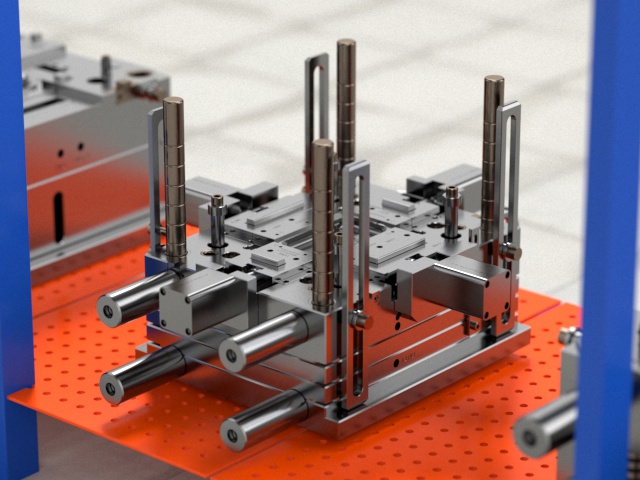

Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448

★ Mold size:	400 X 450 X 426mm
★ Mold weight:	Net weight 470 kg
★ Surface finish:	Polished to SPI-A1

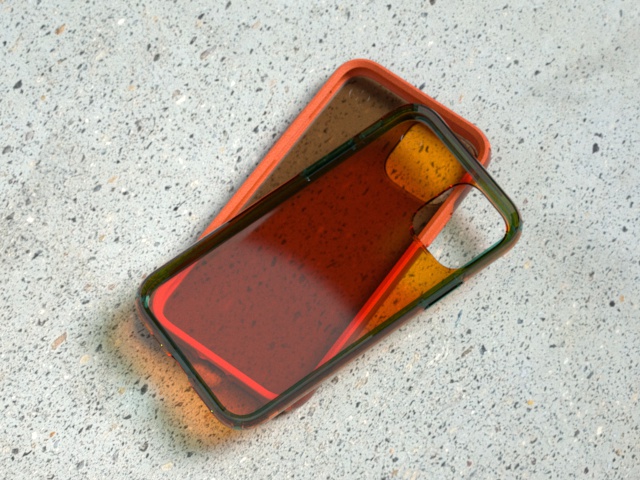

Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448

★ Part size:	150.4X 78.5X 11.8mm
★ Part weight:	10g
★ Part material:	TPE

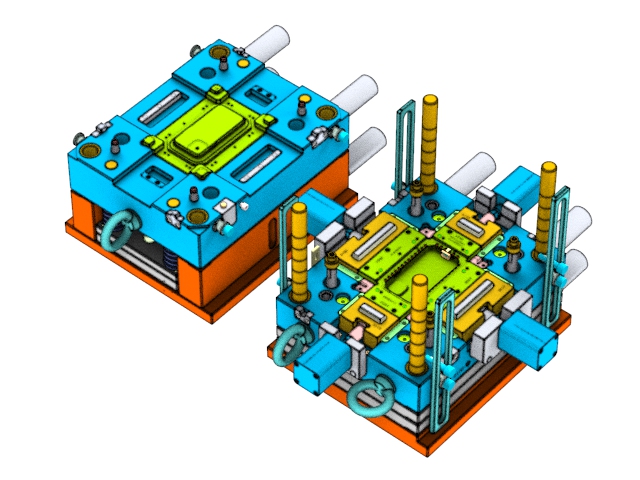

Transparent middle frame (1*1) / Cold runner / Three-plates mold No.22448

Features: Designed with 4 slides (cylinders), cavity and core hardness > 50HRC

Display diagram
