Middle frame (1*1) / Cold runner / Three-plates mold No.22448

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: Middle frame 11 Cold runner Threeplates mold No22448
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Phone Case

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

name : AD

IMM Tonnage : 140T

Mold Weight : 470kg

Part material : TPE

Part weight : 10g

Surface finish : Polished to SPI-A1

Gate : Side gate

Standard : LKM

Mold base : Custom mold base

Contact Now

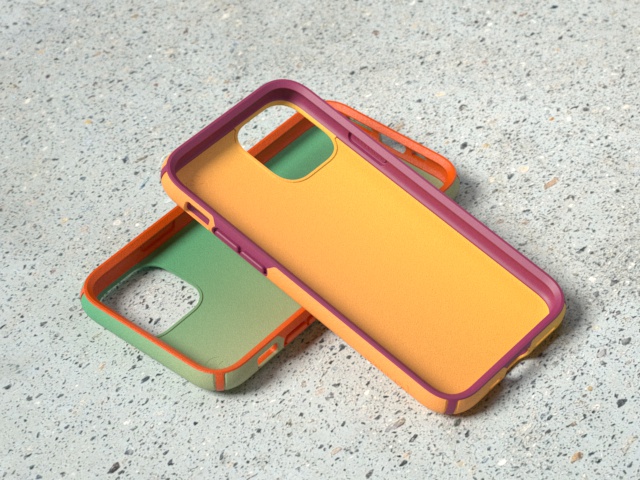

Middle frame (1*1)

No.22448

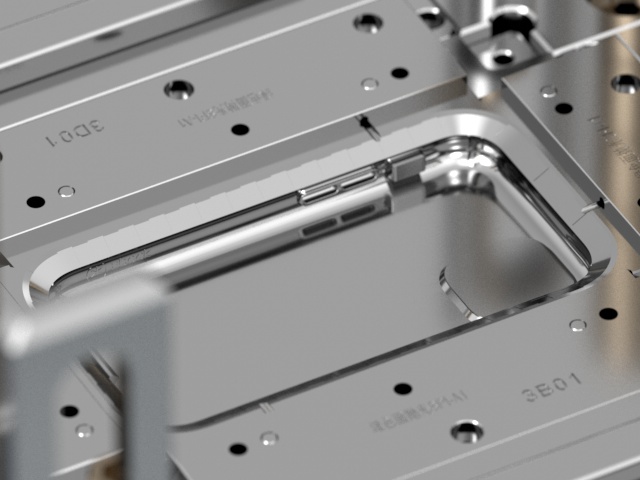

The mold was developed by Chitwing (designed and manufactured). It is designed with a side gate

and a custom mold base; the pin point gate turns to the side gate. The tool life is up to 50 K shots.

Mold good fitted and has good anti-fatigue performance, and meets the LKM standard.

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

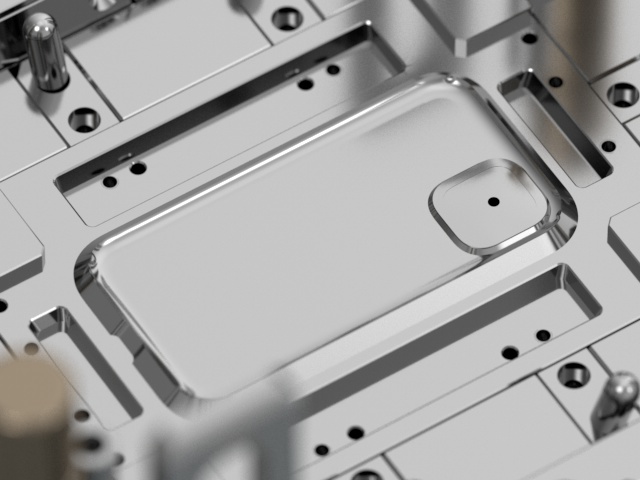

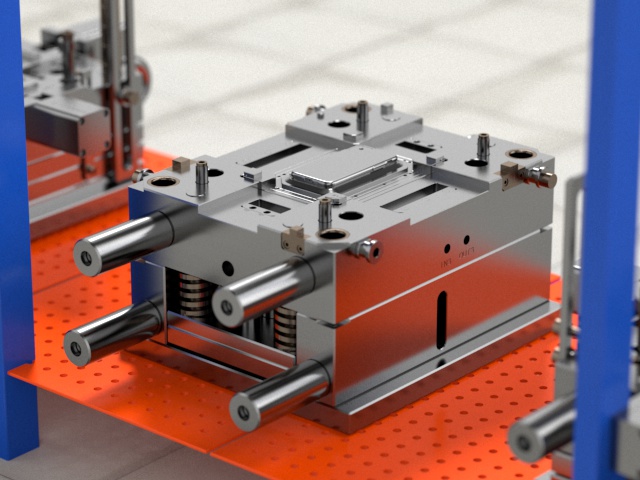

The mold size is 400 X 450 X 426mm (net weight 470 kg); fit 140T machine. The mold surface is

polished to A1, with 4 sliders (cylinders), more scientific design and shorter cycle time.

Middle frame (1*1) / Cold runner / Three-plates mold No.22448

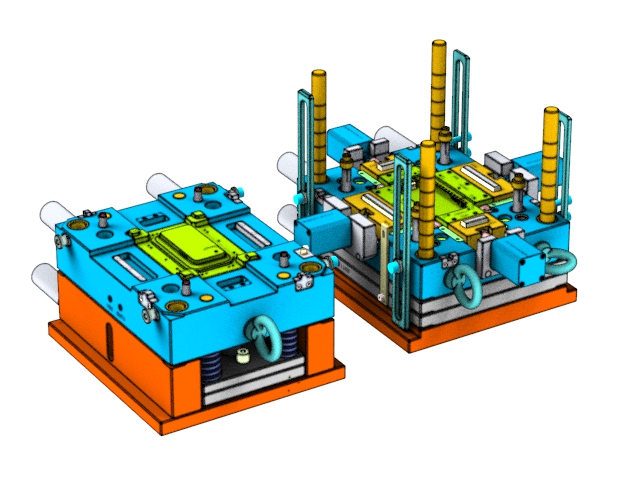

Display diagram
