OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B

Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B

Brand Name : Chitwing

Model Number : Scanning Pen

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

IMM Tonnage : 200T

Size : 230 X 390 X 266

Mold Weight : 181KG

Brand : Chitwing

Place of origin : China

Mold base P/N : Custom FCI2330.308080

Type : Three-plates mold

Contact Now

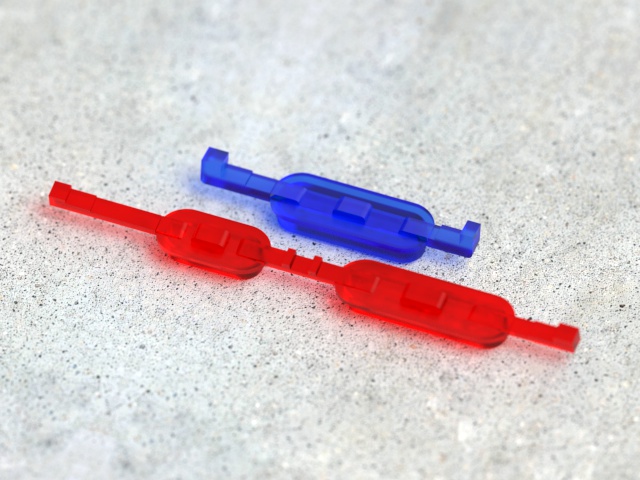

Transparent Scan Pen Power Key (4+4)

No.24006&24007-B



Description:



Cold runner injection molding is a cutting-edge manufacturing process used to create plastic parts with precision and efficiency. This method involves injecting molten plastic into a mold through a network of channels known as the cold runner. The design of the cold runner system is crucial in maintaining the plastic material at an optimal temperature to prevent premature solidification. Once the mold cavity is filled and the material solidifies, the resulting part is ejected, while the excess material in the cold runner is recycled for future use. This approach is highly sought after for its ability to minimize material waste and reduce production costs, making it an ideal choice for high-volume production runs.


Application:



Precision keys
electronic doorbell
Consumer Electronics
mobile phone accessories
Peripheral accessories


Features:



  Double-shot molding
  The mold net weight   181kg
  Mold size   Length   230
  Width   390
  Height   266
  IMM tonnage   200T
  Brand   Chitwing
  Custom mold base P/N   FCI2330.308080
  Injection/Runner Type   Cold Runner
  Gate   Side gate

  The pin point gate turns to the side gate. The sprue bushing does not need

  to be off center of mold base.

  Type   Three-plates mold
  Standard   LKM
  Part material   PC+ABS / PC+TPU
  Part size   1st shot: 11.20*3.80*2.34
  2nd shot: 31.85*2.05*1.09
  Part weight   1st shot: 0.2g
  2nd shot:0.1g
  Surface finish   A surface polishing to SPI-A1
  Steel of cavity   Harden (4+4/S136)
  Steel of core   Harden (4+4/S136)

  This is a custom moldbase 2k mold. Cavity & core well harden and high polished with high

  harness and anti-wearing performance. Meet mass production requirement and with 500k

  shots tool life.



Advantage:



Our company's Cold Runner Injection Molding molds offer a multitude of advantages in the manufacturing process. Firstly, our molds are engineered to deliver precise and consistent part production, resulting in minimal material wastage and superior product quality. The robust construction of our molds ensures longevity and reliability, leading to cost savings and sustained productivity. Furthermore, our molds are designed to optimize cooling and cycle times, thereby increasing production efficiency and reducing lead times. Additionally, the versatility of our molds allows for customization to accommodate a wide range of part geometries and material specifications, catering to diverse production needs.



OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B

OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B








OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B







Display diagram



OEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-BOEM / ODM : Cold Runner Injection Molding & Transparent Scan Pen Power Key (4+4) No.24006&24007-B
