Transparent key (1*8)/ Cold runner / Two-plates mold No.19017

Brand Name : Chitwing

Model Number : Overear Headphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 291.000

IMM Tonnage : 110T

Mold Weight : 155KG

Runner : Cold runner

Mould life : ≥500000 shots

Mould base : LKM

Design software : 3D:UG 4.0, 2D:CAD

Gate : Side gate

Contact Now

Transparent key (1*8)

No.19017



  Chitwing   Type   Standard   Gate
  Two-plates mold   LKM
  Length   Width   Height   Mold net weight   Side gate
  300   300   291   155kg



  IMM tonnage (T)   110



Transparent key (1*8)/ Cold runner / Two-plates mold No.19017

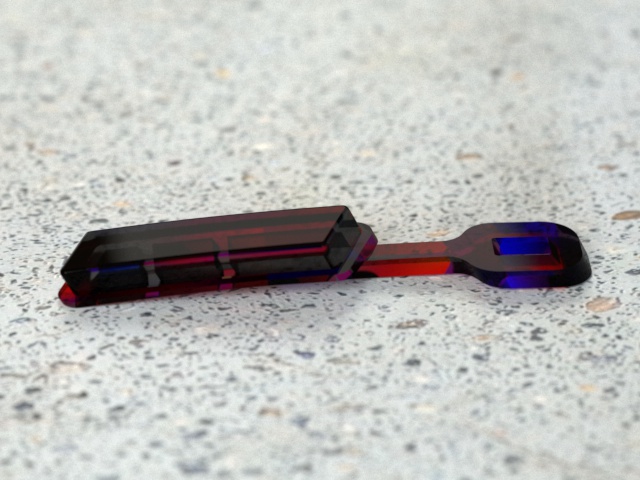

  Part material   Part size
  PC   Length   3.92
  Part weight   Width   20.7
  0.1g   Height   11.42



Considering the cost-effective performance, the two-plates mold has simple design to reduce

the R & D, design and manufacturing costs.



Transparent key (1*8)/ Cold runner / Two-plates mold No.19017



  Surface finish   Steel of cavity and core
  EDM with VDI 10#   Harden with 1*8/S136



Polish and harden the mold to greatly improve the surface smoothness, hardness, strength,

anti-wearing and anti-corrosion performance, with tool life up to 500k shots; with stable cavity

pressure, molten PC can well fit to the inner surface, so that the molded parts have smooth

and accurate surface w/o flow marks and gas marks, with minimized loss of material







Transparent key (1*8)/ Cold runner / Two-plates mold No.19017

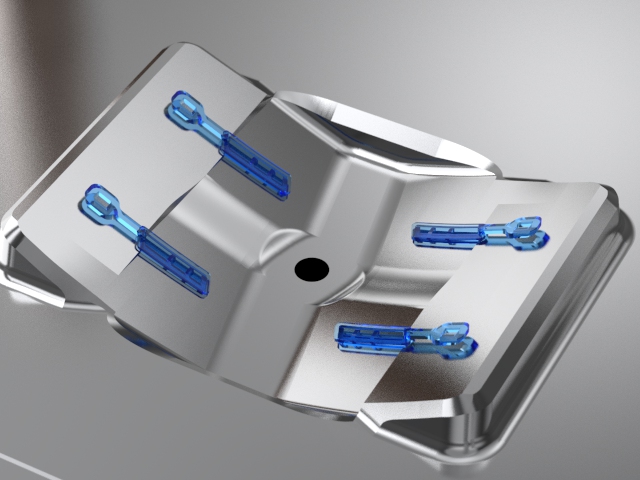

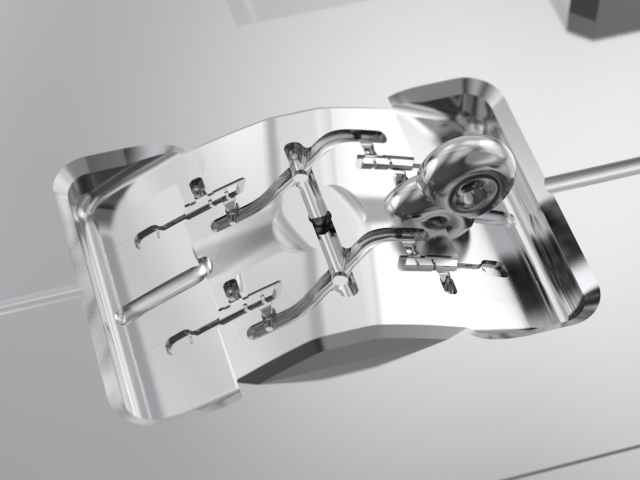

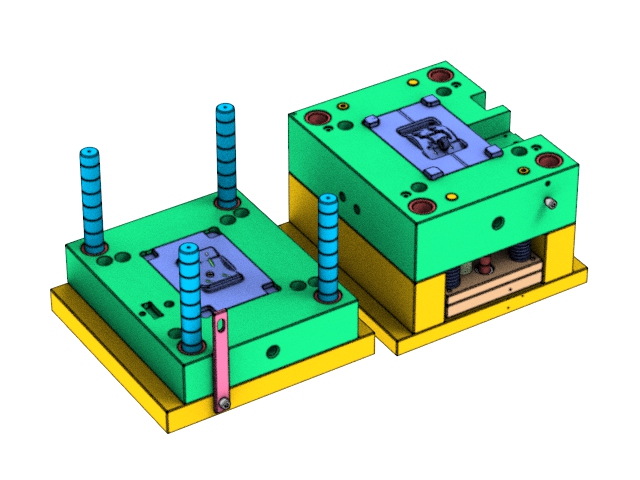

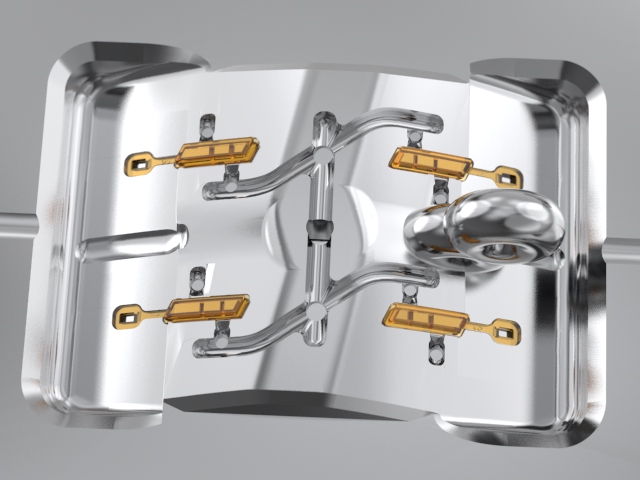

Display diagram



Transparent key (1*8)/ Cold runner / Two-plates mold No.19017Transparent key (1*8)/ Cold runner / Two-plates mold No.19017Transparent key (1*8)/ Cold runner / Two-plates mold No.19017Transparent key (1*8)/ Cold runner / Two-plates mold No.19017
