OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670

Name: OEM ODM Cold Runner Injection Molding amp Transparent Medical Instrument Cover 12 No23670
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670 product

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 320.00 X 300.00 X 261.00

IMM Tonnage : 100T

Mold Weight : 156kg

Tool life : 500k shots

Type : Two-plates mold

Gate : sub gate

Part material : ENH2900

Standard : LKM

Contact Now

Transparent Medical

Instrument Cover (1*2)

No.23670

Standard mold base P/N:

CI2730.608070

Size

(long) 320mm

(Width) 300mm

(High) 261mm

OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670

Type:

Two-plates mold

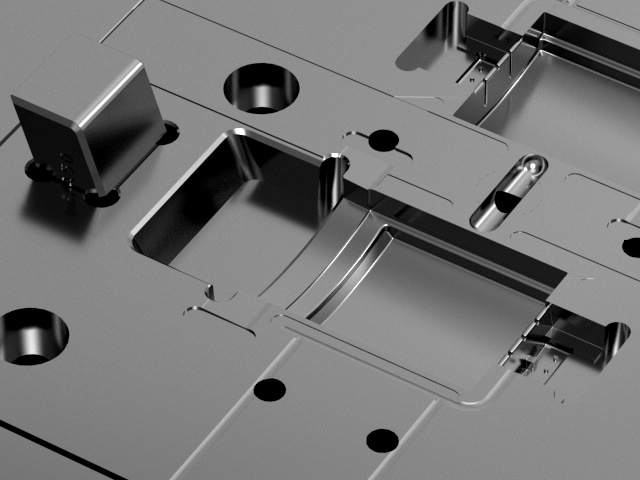

This is a two-plates mold designed with one slide and one lifter to meet customer's cost-effective requirements. A surface is polished to SPI A2, and partial surfaces EDM with MT11030/MT11010/VDI24#. Harden the cavity and core with 1*2/S136 to have high hardness, anti-corrosion and anti-wearing performance, suitable for mass production. The molded parts have smooth surface and clear details without roughness, full and uniform.

Gate:

Sub gate

Part material:

ENH2900

Tool life:

500K shots

Standard

LKM

Injection type

Cold runner

Runner type

Cold runner

☆ 1 slide and 1 lifter

OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670

The mold net weight is 156 kg, fit 100T machine, the part size is 53.7 * 36 * 11 mm, and the

part weight is about 4.9g.

OEM / ODM ： Cold Runner Injection Molding & Transparent Medical Instrument Cover (1*2) No.23670

Display diagram
