Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

Brand Name : Chitwing

Model Number : Smart Watch

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 500 X 346

IMM Tonnage : 80T

Mold Weight : 373kg

Part material : PC

Type : three-plates mold

Standard : LKM

Gate : 3 pin point gates+1 sub gate

part weight : 1.5g

Contact Now

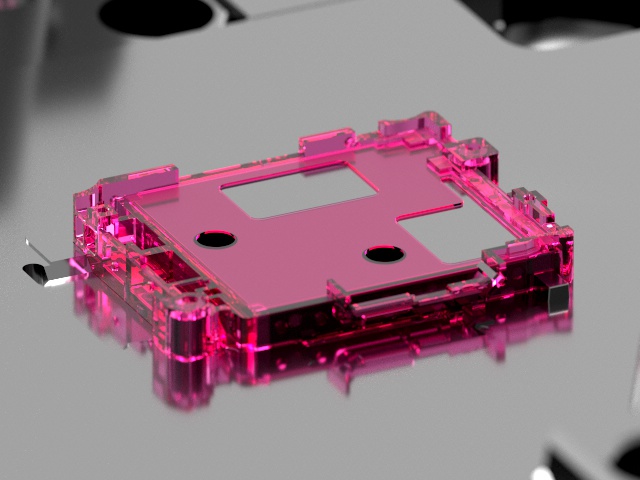

Transparent Smartwatch

Middle Frame Bracket (1*2)

No.22401



  Brand: Chitwing   Gate: 3 pin point gates+1 sub gate
  Origin: Guangdong, China   Standard mold base
  Standard: LKM   Injection/Runner Type: Cold runner
  Type: three-plates mold   Part material: PC



Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

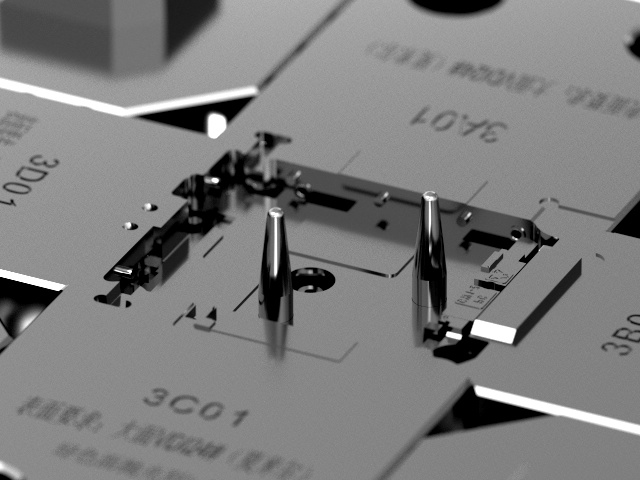

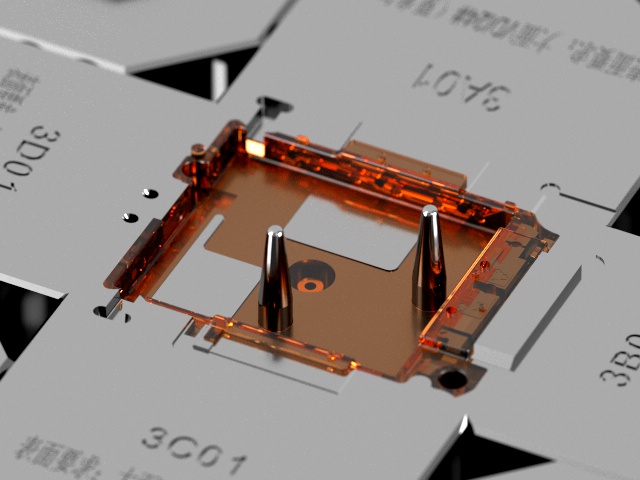

The large surface EDM with Charmilles VDI24#, and harden the cavity and core with 1*2/S136,

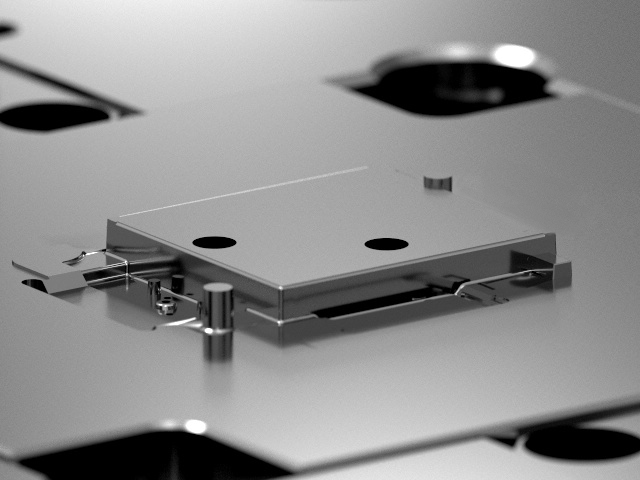

so that the mold has higher toughness and anti-wearing performance. Insert molding with steel

sheet, 4 slides, better mold opening and higher efficiency.



Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401

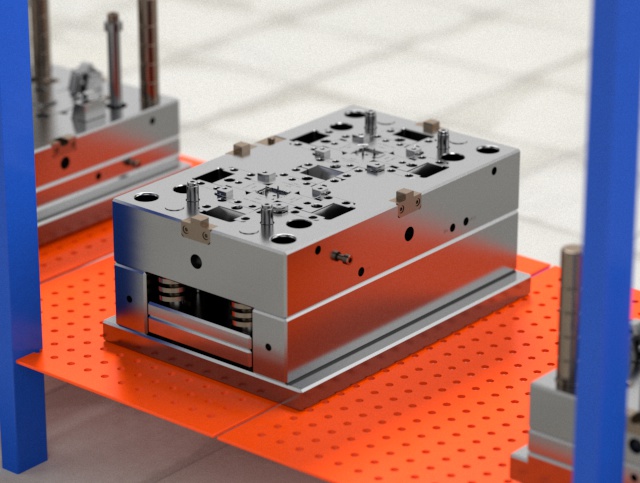

  [Mold size]   [Mold net weight]:
  350 X 500 X 346mm   373kg
  [Part size]:   [Part net weight]:
  33.3*41.7*6.6   1.5g







Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401







  [IMM tonnage]:   80T







Display diagram



Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401Transparent Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401
