Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849

Brand Name : Chitwing

Model Number : Digital Pen

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 150.000 X 220.000 X 177.000

IMM Tonnage : BOY10T

Mold Weight : 47KG

Injection/runner type : Cold runner

Steel of cavity & core : Harden (1*8/S136)

Part Material : PA

Part Weight : 0.1g

Contact Now

Transparent Handwriting Pen Tip (1*8)

No.24849



Mould

information

 Size   150.000 X 220.000 X 177.000
Gate   The horns are glued
Mold lifespan   500k shots



Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849



Mould

Details

   Type   Two plate molds
  Product material   PA
  Surface Finishing   Exterior face Charmey VDI18#
  Standard   LKM
  Cavity/Core material   1*8/S136 quench
  Injection   Cold runner



Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849



Service

One stop

service

  ID/MD evaluation-Tool design-Tool fabrication-Part

  manufacturing-Pre process-Post process-Assembly

  -Complete unit production
Design   Professional CAD/CAM technical platform
  3D:UG 4.0, 2D:CAD







Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849

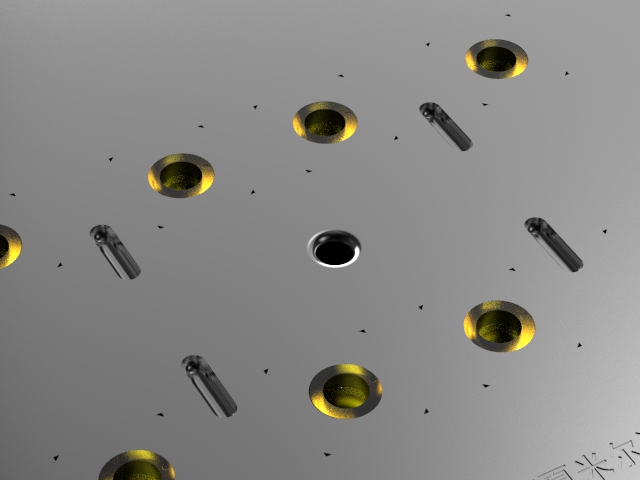

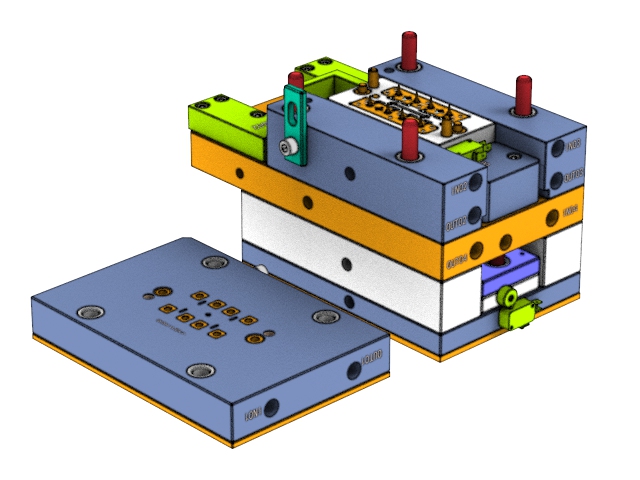

Display diagram



Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849Transparent Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
