Name: OEM ODM Custom Consumer Electronics Molds Transparent Threeproof Phone Upper Bottom Housing 14 No23690
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.000 X 400.000 X 360.400

IMM Tonnage : 110T

Mold Weight : 366.5kg

Injection type : Cold runner

Runner type : Cold runner

Gate : Pin point gate

Tool life : 500000 shots

Standard : LKM

Part material : PC

Mold type : Custom Electronic Enclosures

Contact Now

Transparent Three-proof

Phone Upper Bottom Housing (1*4)

No.23690

★ Mold base :P/N: FCI3540 6010090

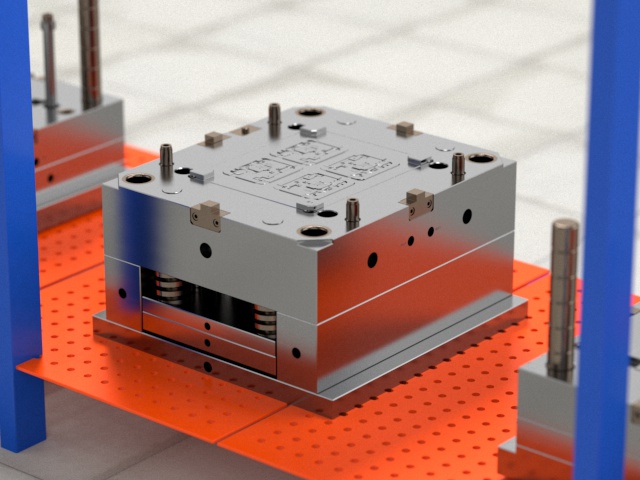

★ Mold size
L: 400	W: 400		H: 360.4
★ Mold weight
366.5kg
★ IMM Tonnage
110T
★ Gate - This is a pin point gate, with flexibility in position. Self-degating and with minimized gate mark.

★ Tool life - Through harden and polished cavity/core, this tool have long tool life (≥ 500k shots)

The mold complies with Chinese general injection mold standard LKM		This is a three-plate mold, easy fillling and self-degating.Part have clear surface texture, with short cycle time.


★ Part material - PC

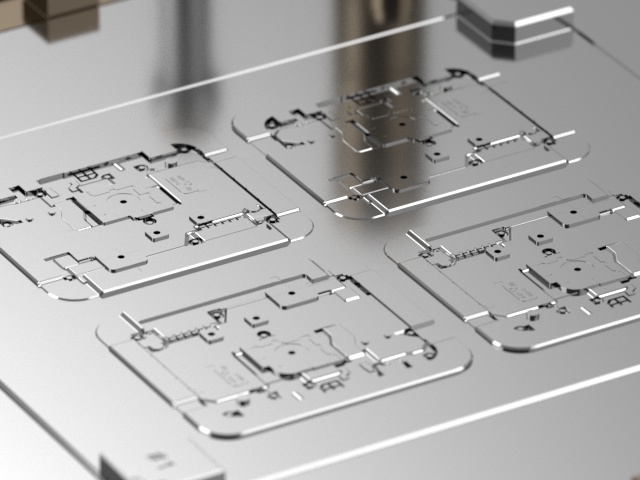

This is a cold runner mold, low tool cost and easier to maintain. Secondary cosmetic surfaces EDM with VDI30#, molded part has a smooth surface and is easier to demould. Harden the cavity and core (1*4/S136) with high hardness,greatly enhance the mold's anti-wear and anti-corrosion ability, with longer tool life,meet the demands of mass production.

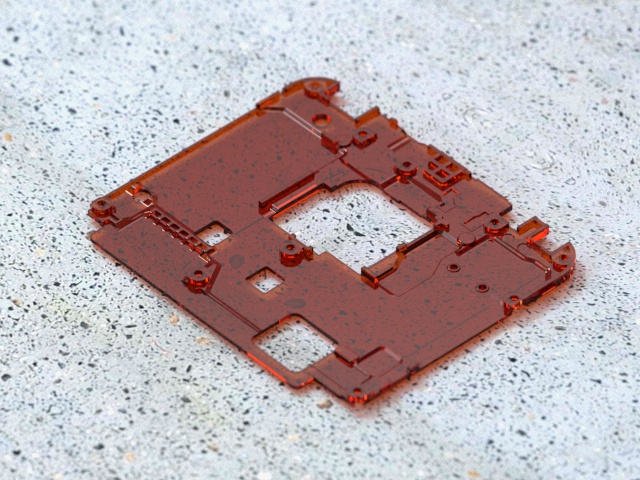

★ Part weight - 3.7g
★ Part size - 67.6X 57.8 X2.58mm
★ Features - 4 x slides and 6 x lifters

OEM / ODM ：Custom Consumer Electronics Molds / Transparent Three-proof Phone Upper Bottom Housing (1*4) No.23690

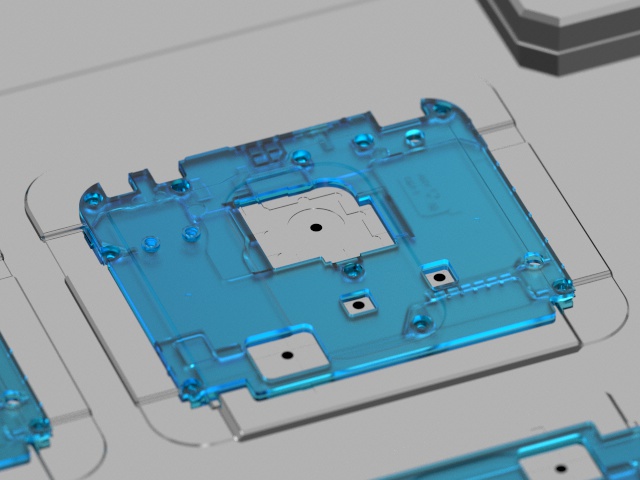

Display diagram
