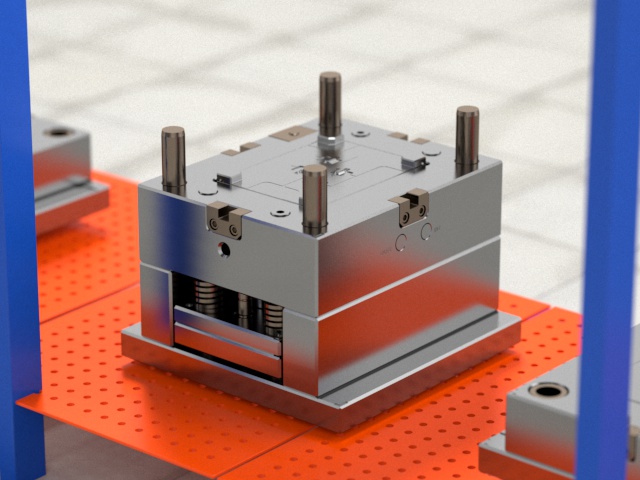

OEM / ODM ： Cold Runner Injection Molding & Smart eyeglass case decorative ring (1*4) No.23846

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Cold Runner Injection Molding amp Smart eyeglass case decorative ring 14 No23846
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Smart glasses Case

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250 X 250 X 241

IMM Tonnage : 100T

Mold Weight : 89KG

Type : Two-plates mold

Runner : Cold runner

Mould base : LKM

Design software : 3D:UG 4.0, 2D:CAD

Gate type : Side gate

Contact Now

Smart eyeglass

case decorative ring (1*4)

No.23846

Standard mold base P/N: CI2025.507070.	Size			Net weight
	Length	Width	Height	89kg
	250	250	241
Brand	This is a two-plates mold developed (designed and manufactured) by Chitwing, with side gate and LKM standard			IMM Tonnage

Chitwing
				100T
Injection/Runner Type: Cold runner

OEM / ODM ： Cold Runner Injection Molding & Smart eyeglass case decorative ring (1*4) No.23846

Surface finish
A surface polished to SPI-A3

Steel of cavity and core
Harden (1*4/S136)

OEM / ODM ： Cold Runner Injection Molding & Smart eyeglass case decorative ring (1*4) No.23846

Part	① Material	② Size			③ Weight
	PC	7.57 X 24.02 X 2.95mm			0.86g

OEM / ODM ： Cold Runner Injection Molding & Smart eyeglass case decorative ring (1*4) No.23846

Short cycle time, minimized loss of material, reducing the cost of materials and producing fine parts. The tool life ≥ 500k shots.

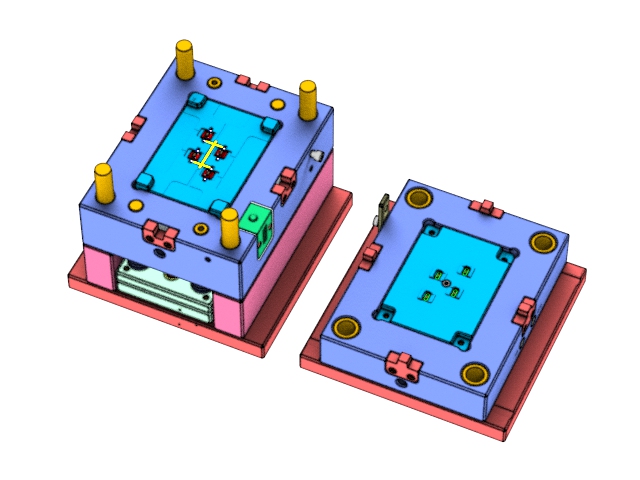

Display diagram
