OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400

Name: OEM ODMCustom consumer electronics molds Smartwatch Front Housing Trim No22400
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400 product

Brand Name : Chitwing

Model Number : Smart Watch

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 316

IMM Tonnage : 80T

Mold Weight : 175kg

Runner : Cold runner

Mould life : ≥500000 shots

Mould material : Harden（1*4/S136）

Design software : 3D:UG 4.0/2D:CAD

Part material : PC

types of mold : Custom injection molds

Contact Now

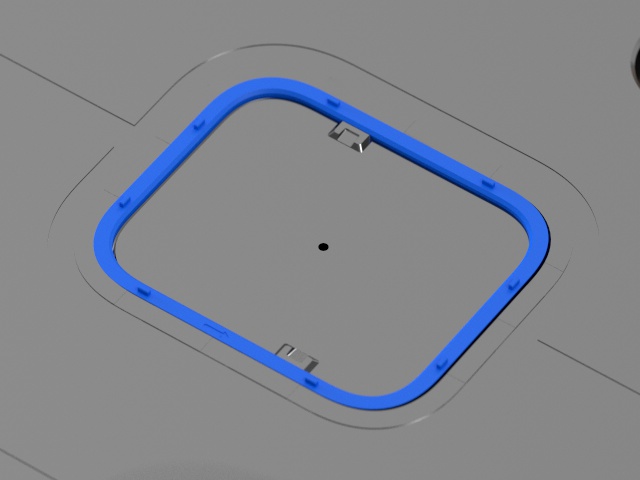

Smartwatch Front Housing Trim

No.22400

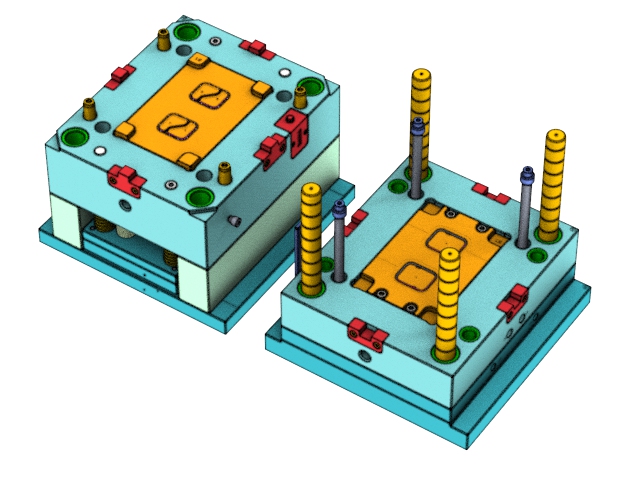

Part size	300 X 300 X 316mm			Net weight
Mold base	Standard (FCI2530.609080)			175kg

OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400

★ Fit 80T machine

The mold is designed with a tab gate, the pin point gate turns to the side gate; more suitable for

the part molding and quality control; the mold is made from high grade steel, with the tool life up

to 500k shots

Part material

Part weight

0.5g

Part size

37.6*45.1*2.1

OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400

Standard

LKM

Injection/runner type

Cold runner

OEM / ODM：Custom consumer electronics molds / Smartwatch Front Housing Trim No.22400

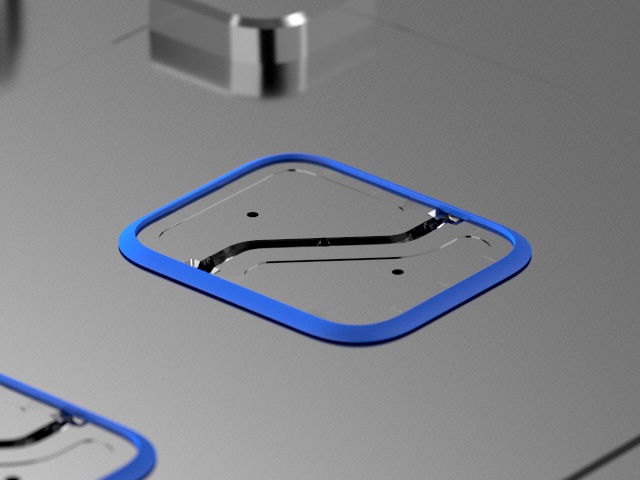

The large surface of the mold EDM with Charmilles VDI24#, and harden the cavity and

core with 1*2/S136, so that the parts have more accurate details and uniform molding quality.

Display diagram
