OEM / ODM ：Custom Consumer / Three-proof Phone Upper Bottom Housing (1*4) No.23690

Name: OEM ODM Custom Consumer Threeproof Phone Upper Bottom Housing 14 No23690
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM ：Custom Consumer / Three-proof Phone Upper Bottom Housing (1*4) No.23690 product

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.000 X 400.000 X 360.400

IMM Tonnage : 110T

Mold Weight : 366.5kg

Mold base P/N : FCI3540 6010090

Gate : Pin point gate

Standard : Chinese general injection mold standard LKM

Type : Three-plates mold

Features : 4 x slides and 2 x lifters

Design software : (3D)UG 4.0/ (2D）CAD

Mold type : Custom Electronic Enclosures

Contact Now

Three-proof Phone

Upper Bottom Housing (1*4)

No.23690

★ Mold base P/N - FCI3540 6010090

OEM / ODM ：Custom Consumer / Three-proof Phone Upper Bottom Housing (1*4) No.23690

[Mold size]: 400x400x360.4 mm
[Mold weight]: 366.5kg
[IMM Tonnage]: 110T
[Gate]: Pin point gate
[Tool life]: Tool life up to 500K shots
[Standard]: Chinese general injection mold standard LKM
[Type]: Three-plates mold

OEM / ODM ：Custom Consumer / Three-proof Phone Upper Bottom Housing (1*4) No.23690

★ 4 x slides and 2 x lifters

Cold runner		① Injection type ② Runner type

Part material		PC
Part weight		3.7g
Part size		67.6X 57.8 X2.58mm
Surface finish		Secondary cosmetic surfaces EDM with VDI30#
Harden (1*4/S136)		① Steel of cavity ② Steel of core

OEM / ODM ：Custom Consumer / Three-proof Phone Upper Bottom Housing (1*4) No.23690

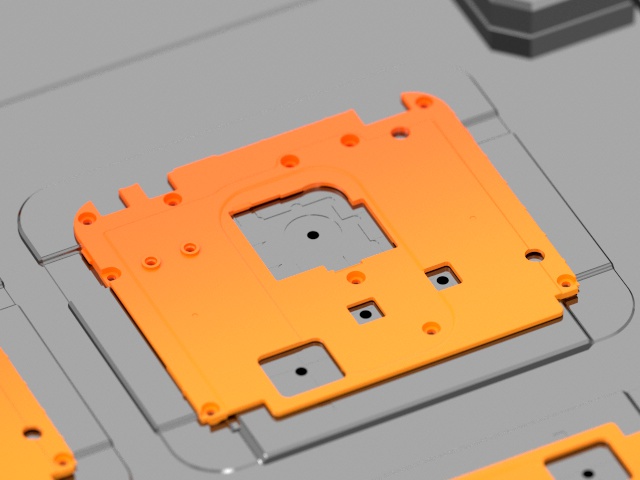

Display diagram
