OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C

Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : India

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450.000 X 500.000 X 482

IMM Tonnage : 220T

Mold Weight : 122kg

Standard : LKM

Type : Three-plates mold

Steel of cavity & core : Harden (1*4/S136)

Part material : PC

Part weight : 0.01g

Contact Now

On-board Universal Joint Ball Head (1*4)

No.24118-C



Description:



Our company is dedicated to manufacturing Multi Cavity Injection Molds that are carefully crafted to enable the simultaneous production of multiple identical parts in a single molding cycle. These molds are engineered with great precision to guarantee consistent part quality and uniformity across all cavities, resulting in enhanced production efficiency and reduced cycle times. The sturdy construction of our Multi Cavity Injection Molds ensures long-lasting durability, contributing to cost-effectiveness and the ability to sustain high-volume manufacturing operations. Moreover, our molds can be customized to accommodate different part geometries and material specifications, offering versatility and adaptability to meet a wide range of production needs.


Application:



Universal wheel accessories
Plastic connector
Injection molded components for everyday use
Everyday essentials


Features:



  Mold base P/N   FCI405070120100
  Standard   LKM
  Type   Three-plates mold
  Mold size   Length   450
  Width   500
  Height   482
  Gate   Pin point gate
  Injection/runner type   Hot runner
  Part material   PC
  Part weight   0.01g
  Part size   4.97 X 4.97 X 0.60mm
  Tool life   Up to 500K shots
  Mold net weight   122kg
  IMM Tonnage   220T
  Surface finish   Inner surface treated with SPI-B2
  Steel of cavity & core   Harden (1*4/S136)



Advantage:



Our Multi Cavity Injection Molds are engineered to transform the manufacturing process. By allowing for the simultaneous production of numerous identical parts in a single molding cycle, these molds significantly boost production efficiency and decrease lead times. The precise design of our molds ensures consistent part quality across all cavities, resulting in top-notch finished products. Furthermore, the durable construction of our Multi Cavity Injection Molds ensures longevity and reliability, resulting in cost savings and sustained high-volume manufacturing capabilities. Additionally, the customizable features of our molds enable the accommodation of various part geometries and material specifications, offering flexibility to meet a diverse array of production requirements.



OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C

OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C








OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C

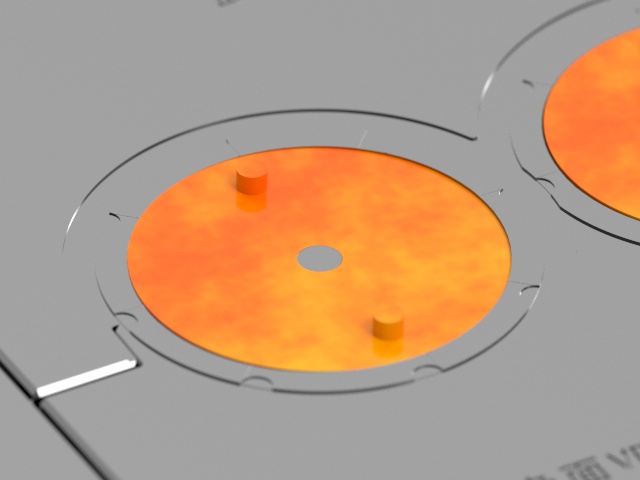

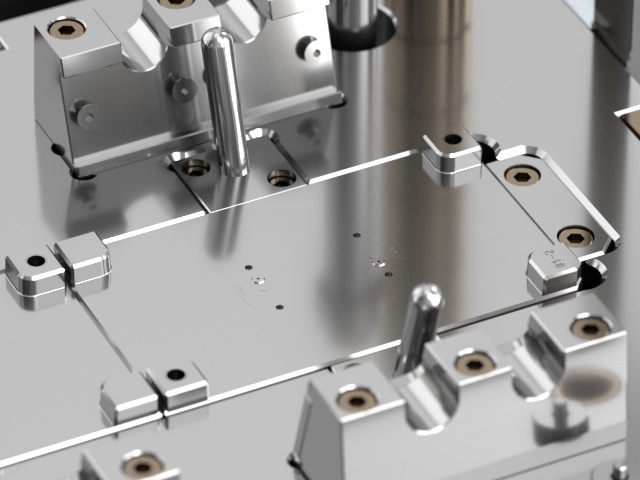

Display diagram



OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-COEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C

OEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-COEM / ODM On-board Universal Joint Ball Head (1*4) No.24118-C



  Mold base P/N: FCI405070120100
  Length   450 Standard Type
  Width   500 LKM Three-plates mold
  Height   482
