OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

Name: OEM ODM Double Injection Molding amp Transparent Router Keys 14 No23894 amp 23895
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895 product

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : L 230 x W 440 x H 316

IMM Tonnage : 140

Net weight : 530kg

Product material : PC/TPU

Design software : 3D:UG 4.0/2D:CAD

Gate type : Overlap gate + pin point gate

Standard : LKM

Contact Now

Transparent Router Keys (1*4)

No.23894 & 23895

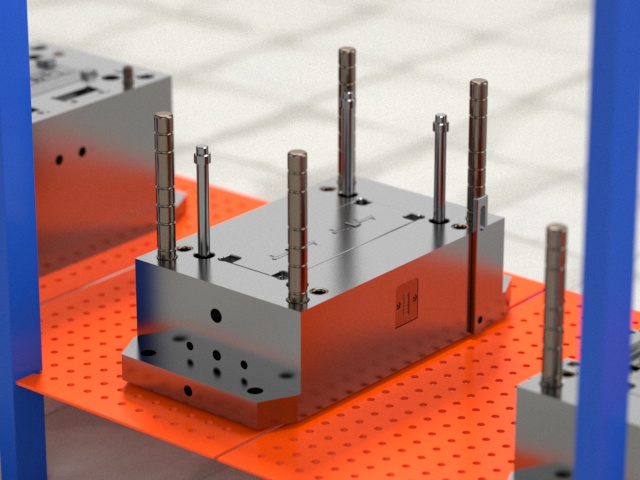

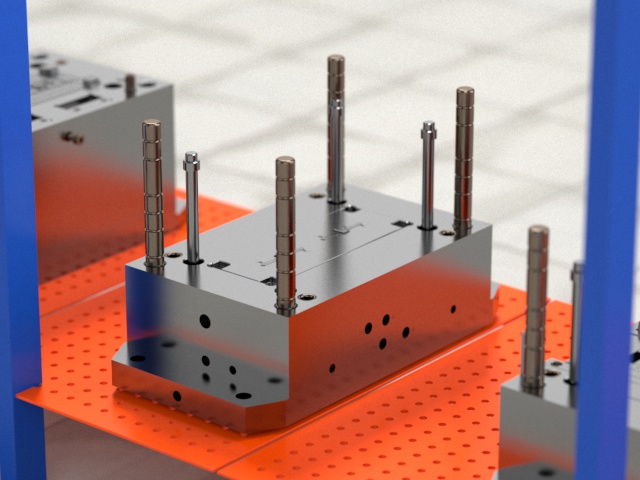

☆ Mold base - FCI2335 709080				☆ Service life
☆ Size - L 230 x W 440 x H 316
☆ Standard - LKM				Up to 50w shots/time
☆ Net weight - 530kg
☆ Tonnage of forming machine - 140T

OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

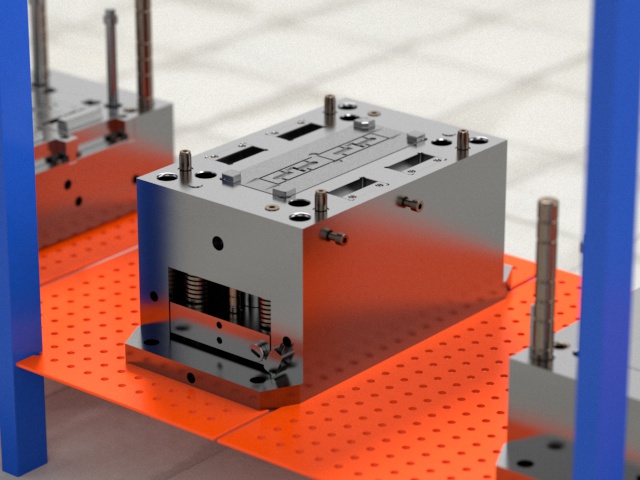

【Type】 - Three-plates mold	【Part material】 - PC/TPU
【Service life】 - Up to 50w shots/time	【Gate】 -Overlap gate + pin point gate
【Features】 - Two-slides	【Injection/runner type】 - Cold runner

OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

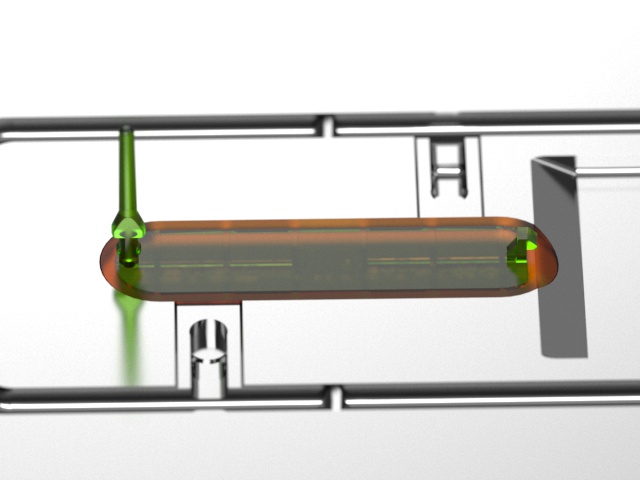

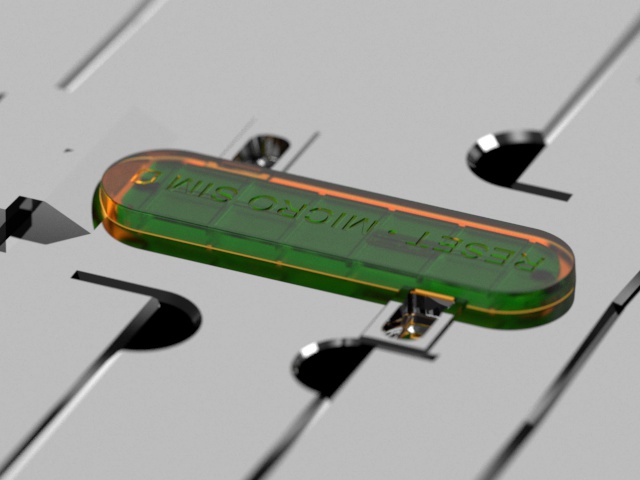

【Part】		☆ Net weight - 0.36g
		☆ Size - 7.90 X 29.85 X 1.60mm

OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

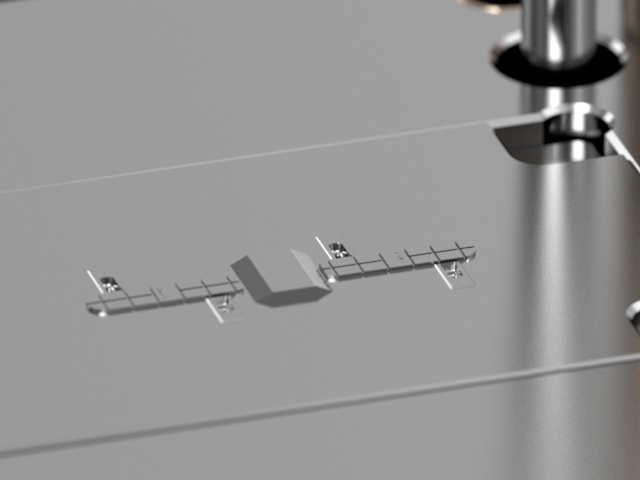

The mold is made as below:

① Grade I critical surface treated with VDI27# pattern

② The soft adhesive surface is polished and treated with VDI21# (Muye),

so that the mold finish is greatly improved, the molded Part is smoother in

surface, has no potholes, and is free from stripping and mold adhesion.

OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

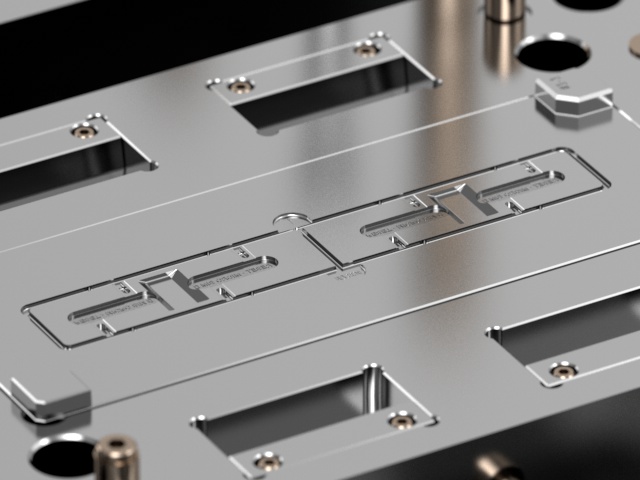

【Material of mold cavity and mold core】:

Quenched with 1*4/S136

The hardness of the mold cavity and the mold core is

greatly increase, so that the mold surface cavity and

the mold core is more wear-resistant and more

corrosion-resistant, and the service life of the die is

greatly prolonged

OEM / ODM ： Double Injection Molding & Transparent Router Keys (1*4) No.23894 & 23895

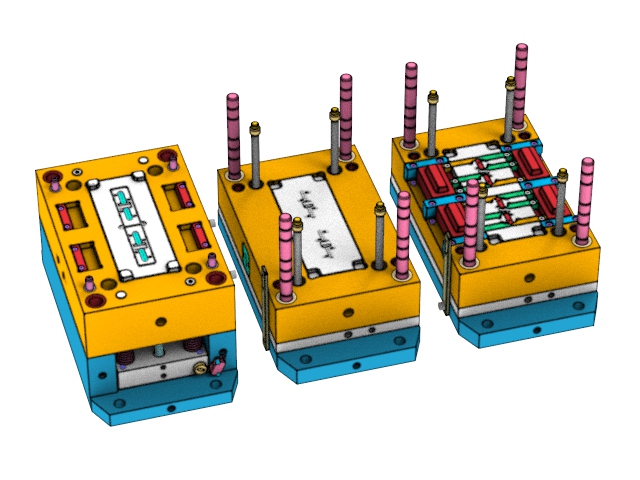

Display diagram
