Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016

Name: Inner Housing 11 Cold runner Threeplates mold No19015 amp 19016
Brand: Chitwing
Price: 1 USD

Buy cheap Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016 product

Brand Name : Chitwing

Model Number : Overear Headphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400.000 X 640.000 X 541.000

IMM Tonnage : 180T

Mold Weight : 1158KG

Injection/runner type : Cold runner

Type : Three-plates mold

Standard : LKM

Part material : PC/TPU

Contact Now

Inner Housing (1*1)

No.19015 & 19016

Brand	Origin
Chitwing	Guangdong, China
Standard	Gate
LKM	Pin point gate
Type	Part material
Three-plates mold	PC/TPU

Slide

Lifter

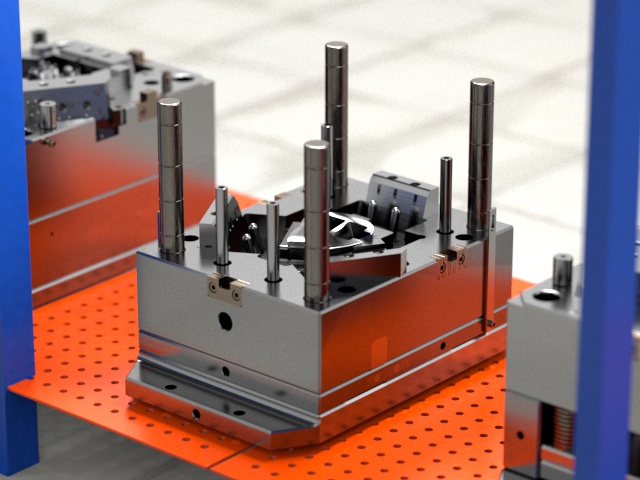

Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016

Custom mold base P/N: FCI4050.A140B150C130			Mold net weight
Custom mold base P/N: FCI4050.A140B150C130			1158kg
Length	Width	Height	IMM Tonnage
400	640	541	180T

Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016

☆ Part size:129.44 X 163.28 X 60.35mm

☆ Part weight:9.84g

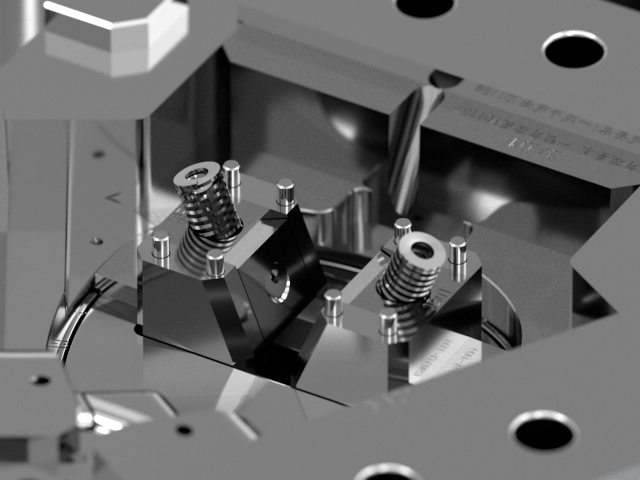

Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016

Partial surfaces EDM with VDI 18#; harden cavity and core with 1*1/S136 to have high hardness

and anti-wearing performance; with uniform wall thickness, stable molding pressure, smooth cavity

surface, free of damage, and low in roughness. The molded parts not sticking with the mold.

Tool life > 500k shots. The molded part features fine details, uniform thickness, and with

precise thread.

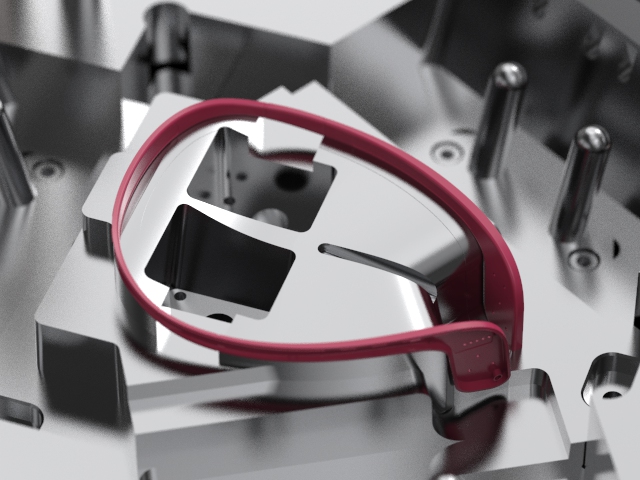

Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016

Display diagram
