OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.00 X 570.00 X 451.00

IMM Tonnage : 250T

slides : 4

lifters : 23

Surface finish : texture VDI27#

Mold net weight : 784kg

Tool life : 500k shots

Gate : Pin point gate

standard : LKM

Type : Three-plates mold

Contact Now

Transparent Three-proof

Phone Battery Cover (1*1)

No.23691& 23692



  Mold size   Standard
  ❶ L: 350 ❷ W: 570 ❸ H: 451   LKM
  Mold base P/N   FCI3545 70120100

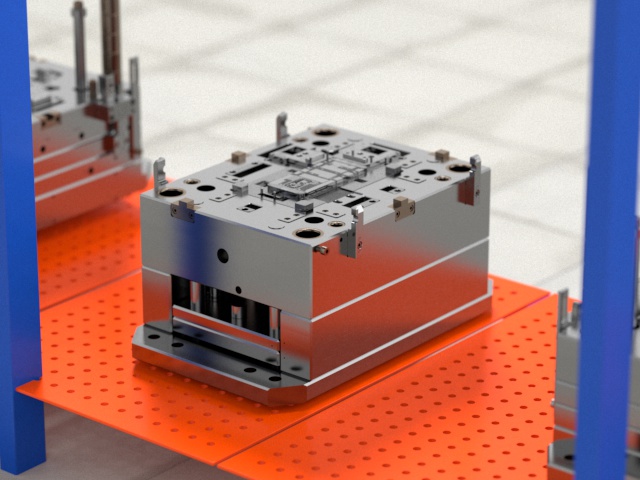

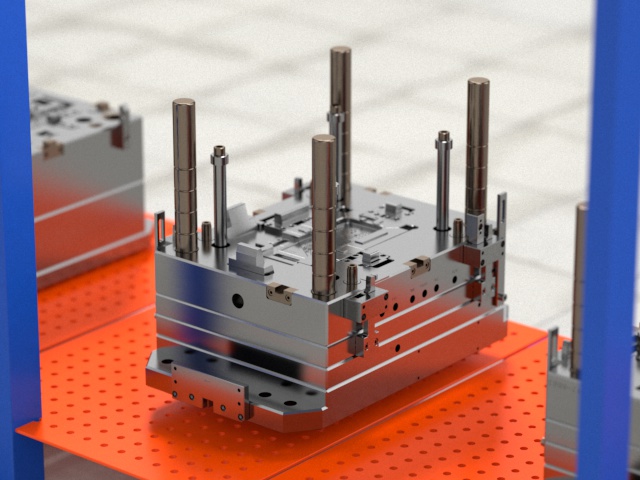

  The mold is a three-plates mold and self-degating, which is good for PC/TPU filling.

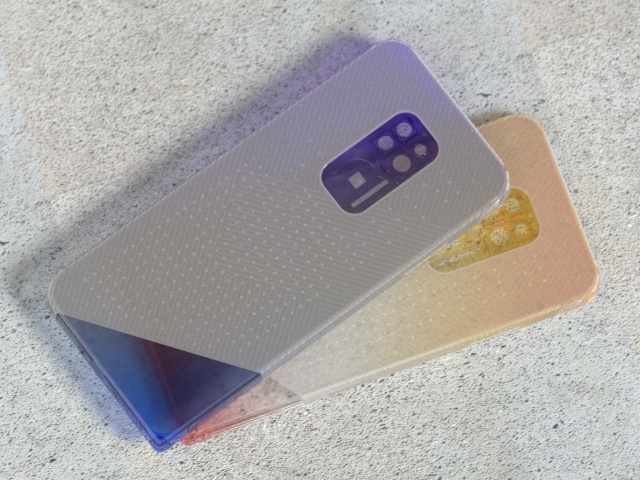

  The molded part has clear texture and short cycle time.



OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692

OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692

OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692



  Mold net weight   784kg
  IMM Tonnage

  250T



  Part material   PC/TPU
  Part weight   33.5g
  Part size   77.81X169.44 X 9.78mm
  Mold life   500K shots
  Gate   Pin point gate



OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692



  Surface finish
  ⑴ A surface polished with 1000#
  ⑵ Texture VDI27#		   Injection/runner type
  Hot runner
  Steel of cavity & core
  Harden (1*1/S136)
  Features   6 x slides and 23 x lifters







OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692

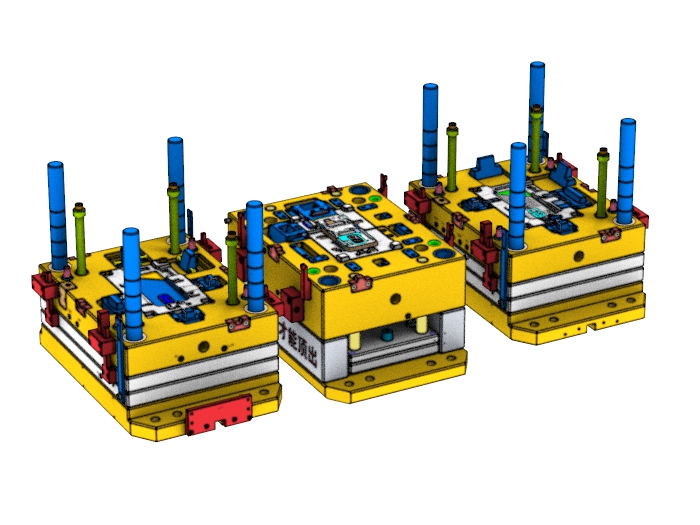

Display diagram



OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692OEM / ODM ： Double Injection Molding & Transparent Three-proof Phone Battery Cover (1*1) No.23691&23692
