OEM/ODM : Custom injection mould / Top cover trim (1*4) No.24668

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEMODM Custom injection mould Top cover trim 14 No24668
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 320.000 X 300.000 X 311.000mm

IMM Tonnage : 110T

Mold Weight : 185.36KG

Mould life : 500，000 shots

Mould base : LKM

Design software : 3D:UG 4.0/2D:CAD

Runner : hot sprue/cold runner.

Product material : PC+ABS

Lifter : 4

runner system : Cold runner

structure : Fixed Cavity + Movable Side + Runner Stripper Plate + runner plate

Contact Now

**Top cover trim (1*4)**

No.24668

Standard: LKM

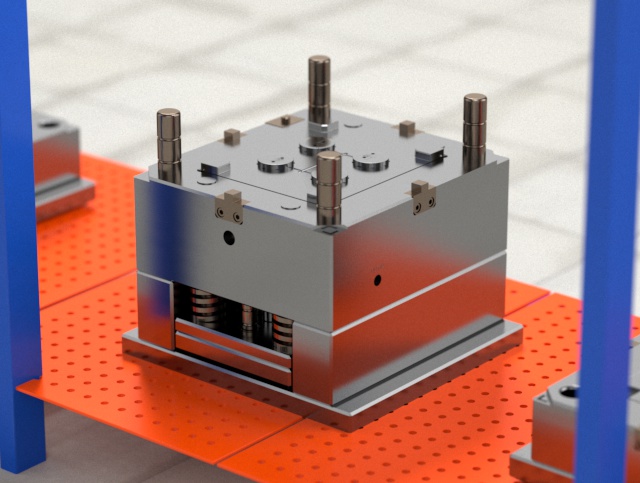

Mold size			Mold net weight
L	W	H	185.36kg
320mm	300mm	311mm
Type	Two-plates mold (no stripper plate, requiring manual degating)

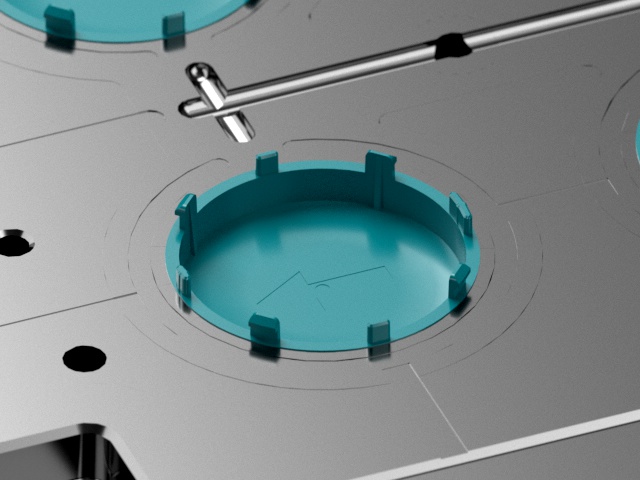

The mold with sub gate concealed on the side, without affecting part appearance and easy for degating

The mold is made of high quality steel billet, harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion performance and prolong the tool life; mold surface goes through high gloss treatment to effectively reduce molding resistance and cavity pressure loss

OEM/ODM : Custom injection mould / Top cover trim (1*4) No.24668

Part	Size	￠42x11mm
	Weight	5g

OEM/ODM : Custom injection mould / Top cover trim (1*4) No.24668

Lifter		4
Injection/runner type		Cold runner

OEM/ODM : Custom injection mould / Top cover trim (1*4) No.24668

Display diagram
