OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 316.000(mm)

IMM Tonnage : 110(T)

Mold Weight : 169.29(kg)

Cavity : Harden with S136

Core : Harden with S136

Gate : Pin point gate

Injection type : Cold runner

Runner type : Cold runner

Part material : PC+20%GF

Tool life : 500k shots

Contact Now

Mainboard bracket (1*2)

No.24317

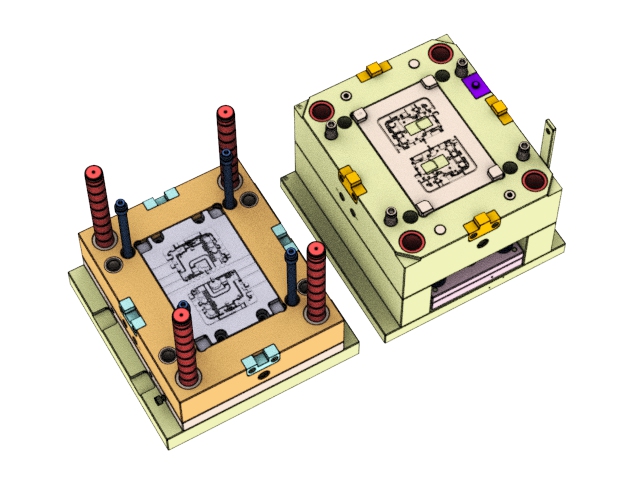

Mold details



  Size (mm)   LKM standard   Gate   Type
  L: 300   W: 300   H: 316   Pin point gate   Three-plates mold
  Net weight (kg)   Cavity   Core   Injection type   Runner type
  169.29kg   Harden with S136   Cold runner   Cold runner



OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317



Tool life
500k shots



① Fit 110T machine



OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317

OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317

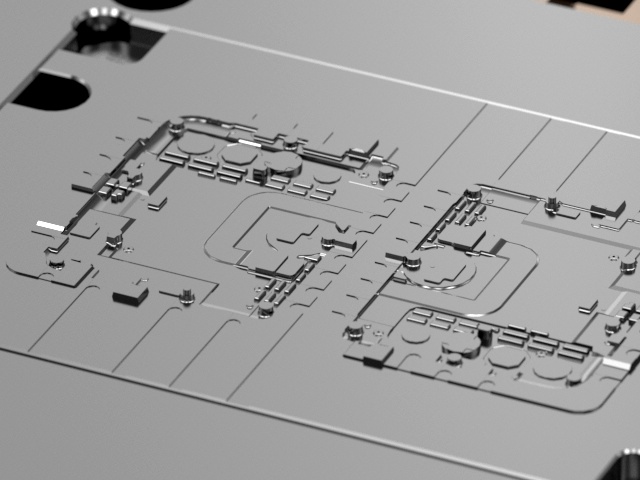

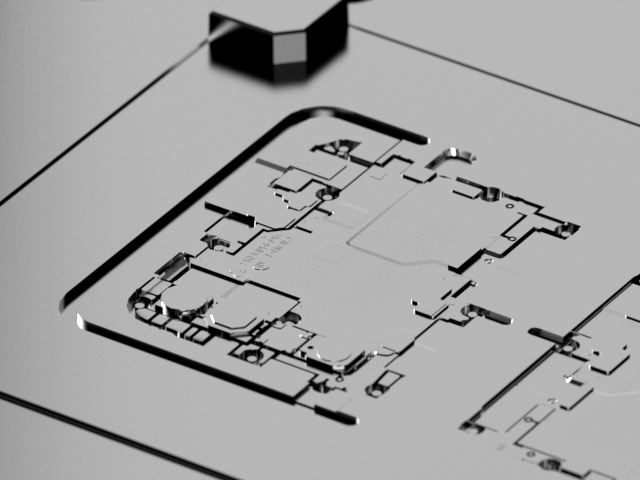

② Mold surface EDM with VDI27#, harden the cavity and core to improve the hardness,

anti-strain and anti-corrosion performance, prolong the tool life









OEM/ODM：How to customize cost-effective molds / Mainboard bracket (1*2) No.24317

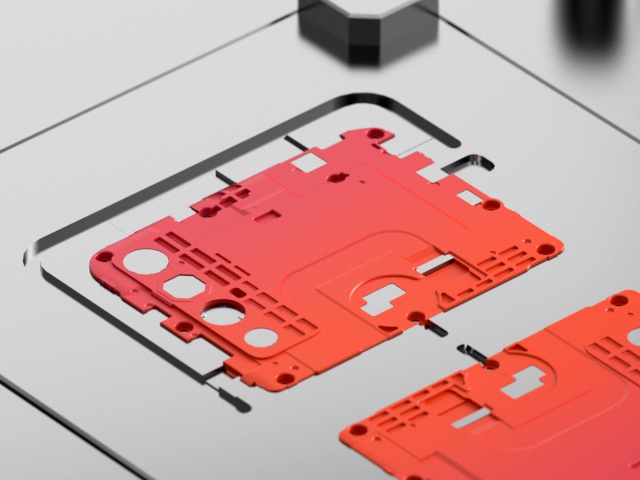

Display diagram
