Button (1*4) / Cold runner / Three-plates mold No.24671

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: Button 14 Cold runner Threeplates mold No24671
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 280.000 X 270.000 X 295.400（mm）

IMM Tonnage : 110（T）

Mold Weight : 132.88（KG）

Mould life : ≥500000 shots

Mould base : LKM

Design software : <3D:UG 4.0>/ <2D:CAD>

Runner : Cold runner

Gate : Pin point gate

Part material : PC+ABS

Part net weight (g) : 0.7

Contact Now

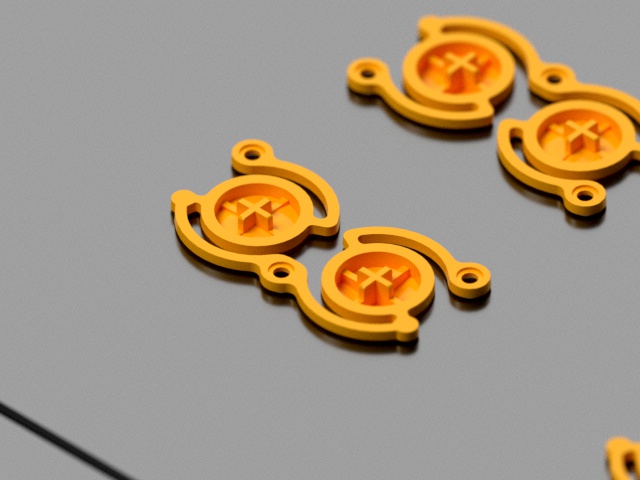

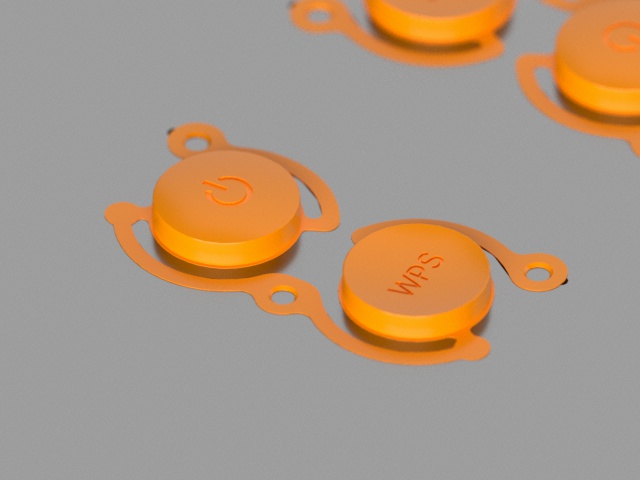

Button (1*4)

No.24671

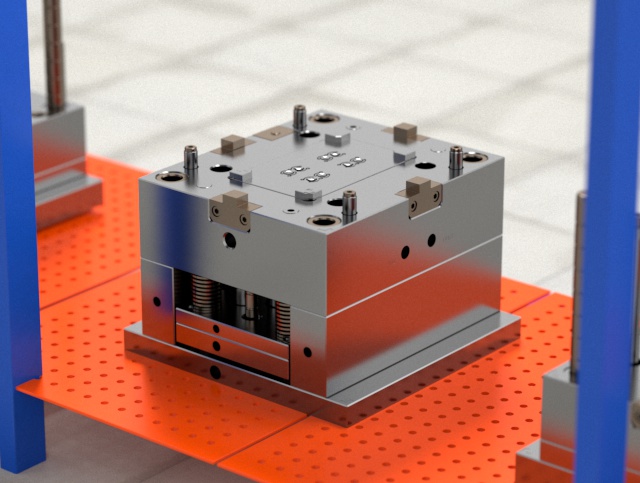

Three-plates mold, self-degating,

meet automated production requirements

Standard		Gate		Injection/runner type		Surface finish		IMM tonnage
LKM		Pin point gate		Cold runner		VDI27#		110T

Button (1*4) / Cold runner / Three-plates mold No.24671

Mold size (mm)				Steel of cavity	Steel of core	Mold net weight (kg)
280270295.4				Harden with S136		132.88

Button (1*4) / Cold runner / Three-plates mold No.24671

Part size (mm)				Part material		Part net weight (g)
15.73.5531.02				PC+ABS		0.7

Design	3D:UG 4.0
	2D:CAD

Button (1*4) / Cold runner / Three-plates mold No.24671

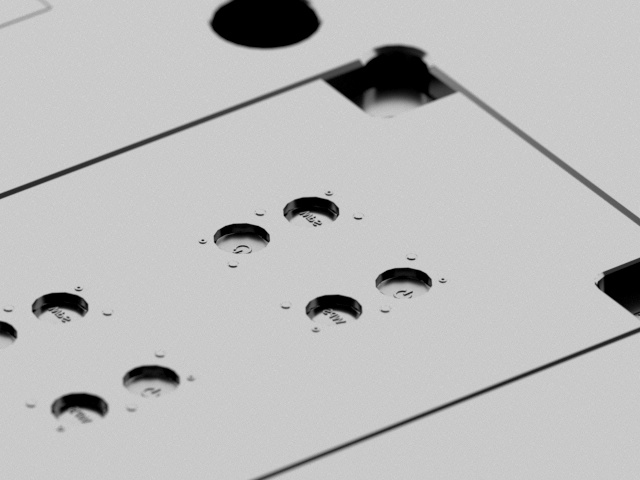

Display diagram
