OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 450.000 X 374.400（mm）

IMM Tonnage : 130（T）

Mold Weight : 371.71（KG）

Lifter : 6

Surface finish : VDI21#

Part material : PC+ABS

Part net weight : 23.3g

Injection/runner type : Hot Sprue Cold Runner

mold type : Custom consumer electronics molds

Forming method : Encapsulation Molding

Contact Now

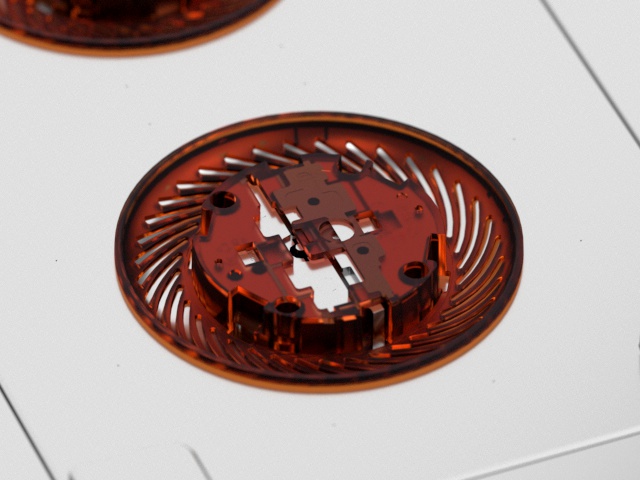

Transparent bottom cover bracket (1*2)

No.24677.





  Standard   LKM   Surface finish
  Type   Three-plates mold (self-degating)   VDI21#
  Mold size   350X 450X 374.4mm   Lifter
  Gate   Pin point gate   6

  Mold surface polished with VDI21# to have high glossiness for easy demolding; harden the

  cavity and core with S136 to improve the hardness and anti-wearing performance, greatly

  improve the tool life (up to 500k shots); fit 130T machine



OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677



  Mold size   L*W   350*450mm   Part size   Diameter   ￠95mm
  H   374.4mm   H   14.1mm
  Mold net weight   371.71kg   Part net weight   23.3g

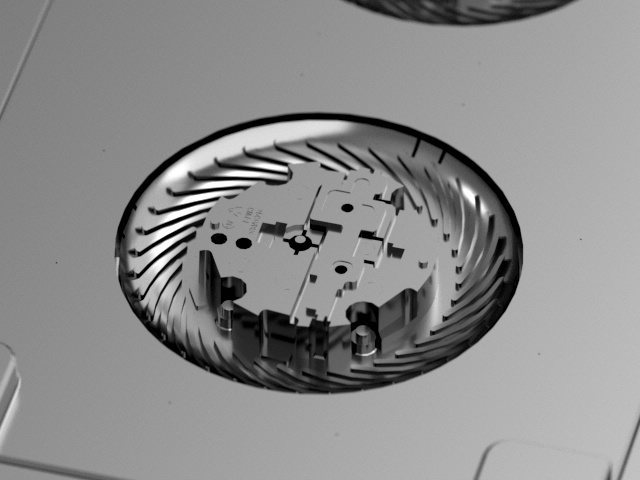

OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677

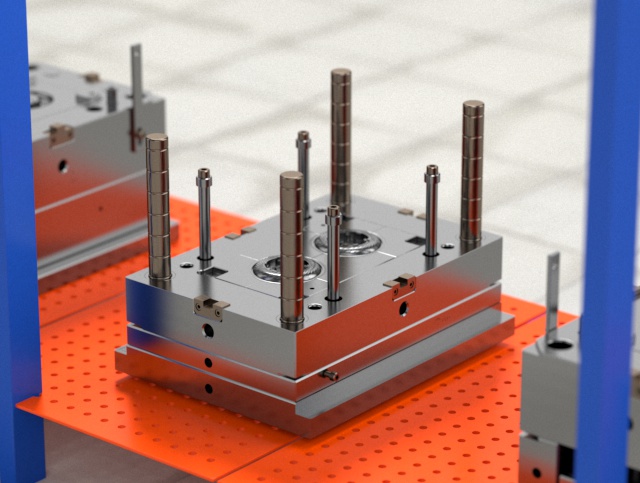

Display diagram



OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677OEM/ODM: Custom electronic enclosures / Transparent bottom cover bracket (1*2) No.24677
