OEM / ODM ： Single Cavity Injection Mold & Router Upper Cover (1*1) No.23891

Name: OEM ODM Single Cavity Injection Mold amp Router Upper Cover 11 No23891
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM ： Single Cavity Injection Mold & Router Upper Cover (1*1) No.23891 product

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 550.000 X 550.000 X 516.000

IMM Tonnage : 180T

Mold Weight : 927kg

Design software : 3D:UG 4.0, 2D:CAD

Mould material : Harden（1*4/S136）

Mould life : ≥500000 shots

Mold base : FCI4555 A100B150C130

Surface finish : VDI27# etch

Features : 2xslides and 6x lifters

Part material : PC+ABS

Contact Now

Router Upper Cover (1*1)

No.23891

Mold base: FCI4555 A100B150C130

Size: 550.000 X 550.000 X 516.000mm

Size	Mold base: FCI4555 A100B150C130				Net weight

Length	Gate: sub gate (the pin point gate turns to the side gate)				927kg
550
Width	Standard	Type	Slide	Lifter	IMM Tonnage
550
Height	LKM	Three-plates mold	2	6	180T
516

OEM / ODM ： Single Cavity Injection Mold & Router Upper Cover (1*1) No.23891

Part material	PC+ABS	Surface finish	Steel of cavity and core
Tool life	500k shots	A surface VDI27# etch	Harden (1*1/S136)
Injection/runner type	Hot runner
Part weight	68.5g
Part size	181.71 X 124.50 X 57.56mm

OEM / ODM ： Single Cavity Injection Mold & Router Upper Cover (1*1) No.23891

The mold is designed with sub gate, with flexible gate position, self-degating, minimized gate marks,

2 slides and 6 lifters, scientific and smooth demolding; the hot runner ensures no loss of material,

reducing material cost; polish and harden the mold to improve the hardness, anti-wearing and

anti-corrosion performance, short cycle time, w/o flow marks and gas marks. Molded parts have

clear and precise details.

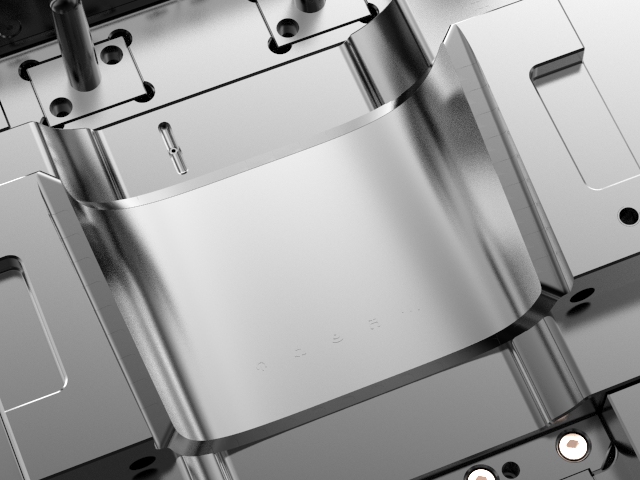

Display diagram
