OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

Brand Name : Chitwing

Model Number : Router

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350 X 400 X 366

IMM Tonnage : 180T

Mold Weight : 318KG

Design software : 3D:UG 4.0/2D:CAD

Mould base : LKM

Runner : Cold runner

Mould life : ≥500000 shots

Contact Now

Bottom cover (1*2)

No.23392



  Standard mold base

  P/N: FCI3040.7010090.

   Net weight   IMM Tonnage
  318kg   180T
  Length   Width   Height   Standard
  350   400   366   LKM



  Gate
  Pin point gate
  Type
  Three-plates mold



OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

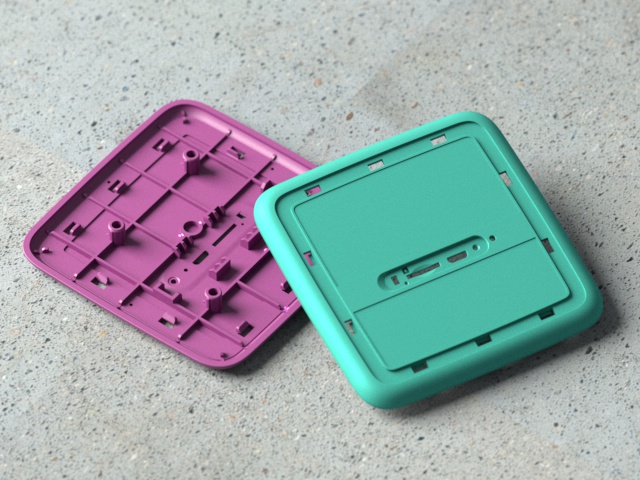

  Part material   Part weight
  PC   ABS
  Part size   2.5g
  97.4*97.4*9.9mm



OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392



Surface finish
A surface EDM with VDI27# (Makino) Secondary surface EDM with VDI18# (Makino) Other large surfaces EDM with VDI30# (Makino)







OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392

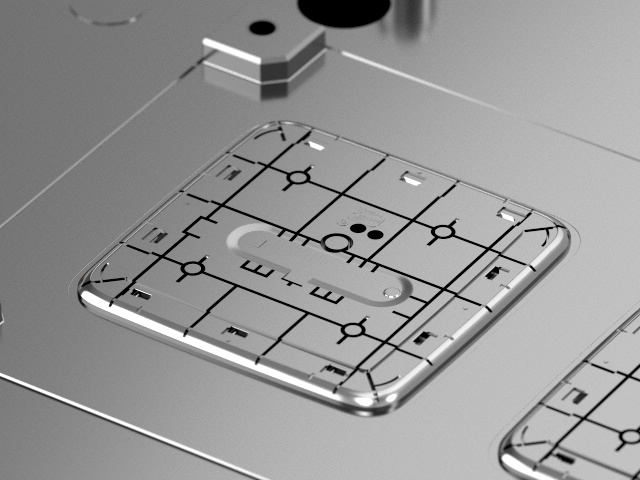

Steel of cavity and core
Harden (1*2/S136)



The mold is developed by Chitwing, with full consideration of cost-effective performance; clean steel billet, LKM standard; the cavity has good smoothness and no pits; harden the cavity and core to have high hardness and anti-wearing performance; good fluidity and balanced pressure in the cavity; the molded part has smooth surface, complete details and stable quality, w/o flow marks and gas marks







Display diagram



OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392OEM / ODM ： Single Cavity Injection Mold & Top cover (1*2) No.23392
