OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183

Name: OEM ODM Custom Precision Machining Molds Transparent AR middle frame 11 No25183
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183 product

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450 X 656 X 500

IMM Tonnage : 350T

Mold Weight : 952KG

Custom mold base P/N : GCI4050.A = 180 B = 200 C = 180

Gate type : Side gate

Slide : 6

Lifter : 6

Injection Runner System : Hot runner

Materials : abs + pc molding

Mold type : Custom mould

Contact Now

Transparent

AR middle frame (1*1)

No.25183

Standard LKM		Length
Standard LKM		450
Custom mold base P/N: GCI4050.A = 180 B = 200 C = 180		Width
		656
		Height
		500
Gate	Type	Net weight
Side gate	Three-plates mold	952kg

☆ IMM tonnage: 350T

OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183

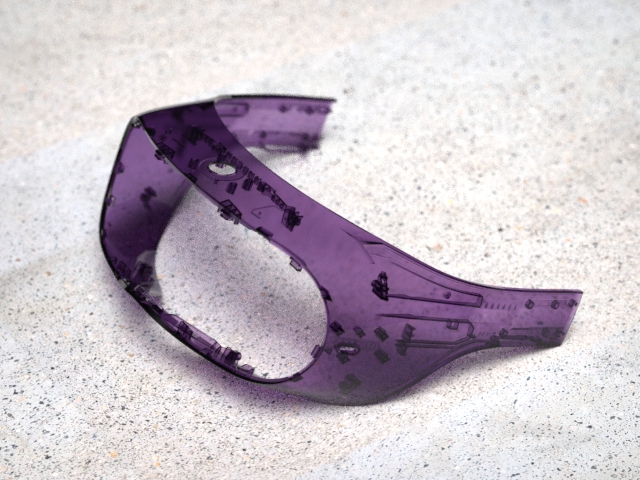

Part
Material	Weight	Size
PC+ABS	52g	197.6185.34160.63mm

Injection/

runner type

Hot runner

Surface finish
A surface texture: YS20020, high gloss
Steel of cavity and core
Harden (1*1/S136)

Gate
Side gate
Slide	Lifter
6	6

OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183

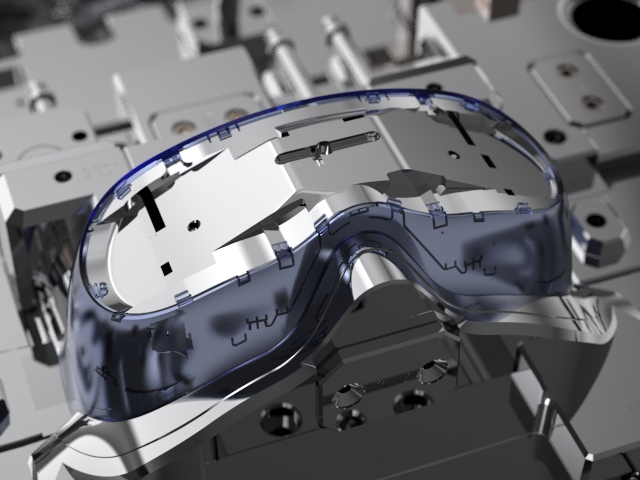

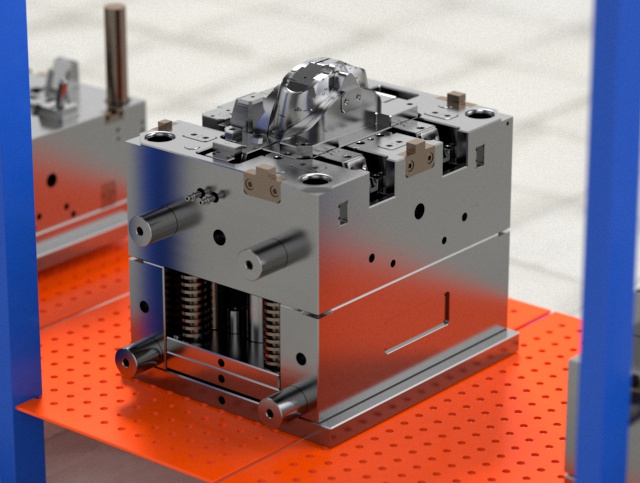

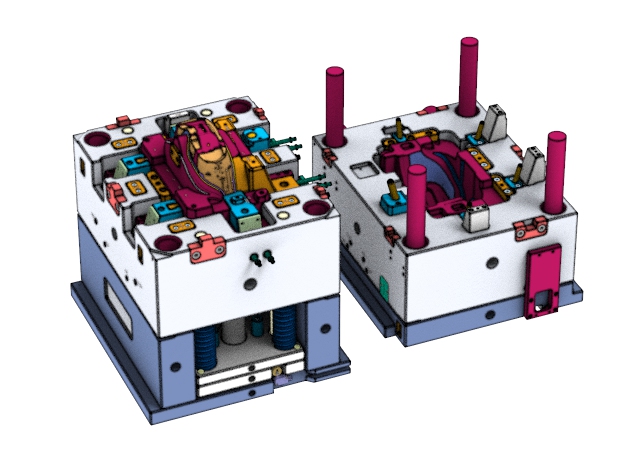

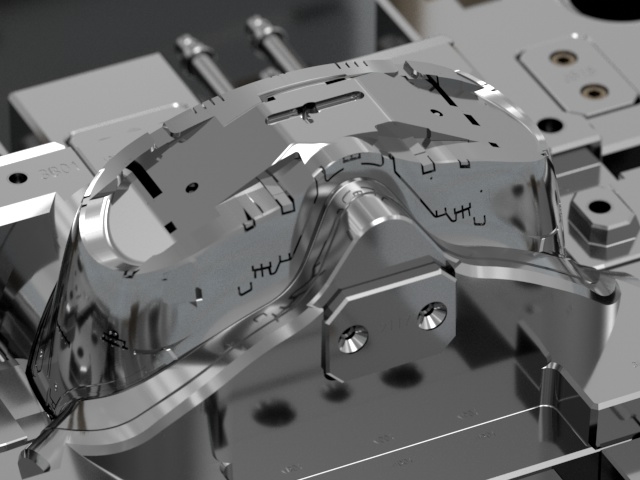

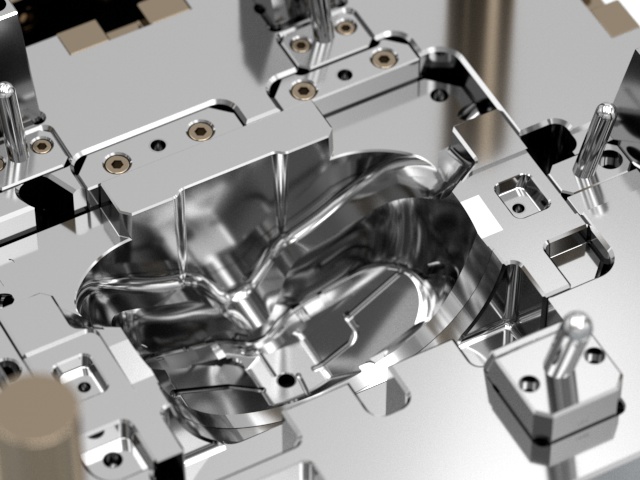

The mold is designed with custom mold base and hot runner according to the characteristics of PC+ABS, with no loss of material; A surface texture: YS20020, high gloss, uniform wall thickness, stable mold pressure; molded parts have uniform thickness, smooth surface w/o flow marks and gas marks, with clear details

Display diagram

Product Tags:

Three Plate ABS Injection Molding

LKM ABS Injection Molding

350T hot runner plastic injection mould

OEM / ODM : Custom Precision Machining Molds / Transparent AR middle frame (1*1) No.25183 Images
