OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603

Name: OEM ODM Hot Runner Injection Molding amp Flat Front Shell 11 No23603
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603 product

Brand Name : Chitwing

Model Number : Tablets

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450.00 X 500.00 X 556.00

IMM Tonnage : 180T

Mold Weight : 600kg

Part material : PC+20%GF

Design software : <3D:UG 4.0>/ <2D:CAD>

Runner : Hot runner

Mould life : 500，000 shots

Contact Now

Flat Front Shell (1*1)

No.23603

Size	450.00 X 500.00 X 556.00mm
Injection/runner type	Hot runner
Standard	Type	Gate
LKM	Three-plates mold	Pin point gate

OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603

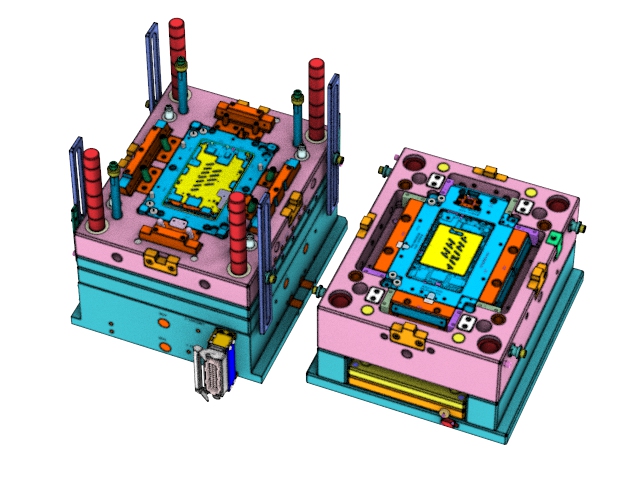

Custom mold base, 2x hot runner valve gates turn to cold runner pin point gates, 4 slides and

8 lifters, uniform wall thickness, minimized cold slug

OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603

Part material: PC+20%GF

Tool life: 500k shots

OEM / ODM ： Hot Runner Injection Molding & Flat Front Shell (1*1) No.23603

Surface finish

A surface polished to

800# sandpaper

Gluing surface (jet & PSA)

EDM with VDI21#

Other surfaces EDM

with VDI27#

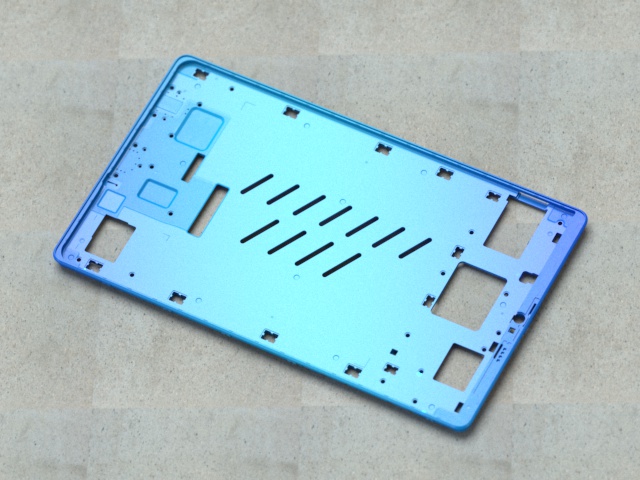

The mold net weight is 600 kg, fit 180T machine. The part weight is 42g,

and the part size is 123.98 X 211.74 X 7.19mm

Display diagram
