OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 400.000 X 446.000

IMM Tonnage : 140T

Mold Weight : 416kg

Slides : 4

Injection type : Hot runner

runner type : Hot runner

Gate : Direct gate

Part net weight : 5g

Part size : 164.69 X 77.42 X 6.75mm

Standard : LKM

Type : Two-plates mold

Contact Now

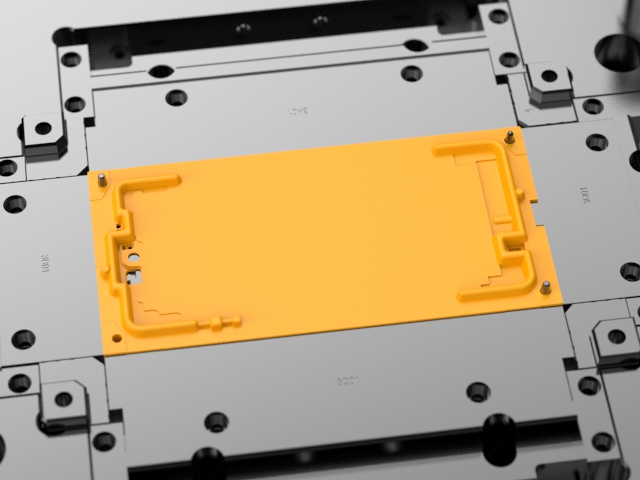

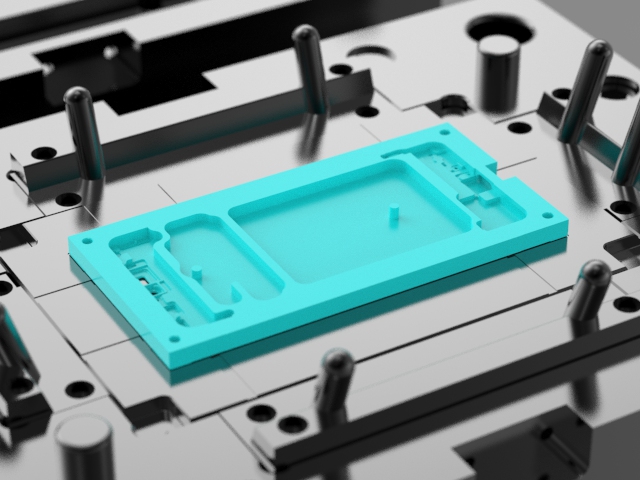

Mobile Phone TP Trim (1*1)
No.23854



[Mold base]: custom mold base CI3040.7010090



  [Size]   350x400x446mm   [Injection/runner type]   Hot runner
  [Tool life]   500K shots

  This is a two-plates mold designed with nano

  injection molding (effectively reduce the part weight,

  thickness, reduce the cost and prolong the service

  life), 4 slides, hot runner, direct gate, fast and uniform

  mold filling, stable cavity pressure and no loss of

  material.
  [Gate]   Direct gate
  [Type]   Two-plates mold
  [Standard]   LKM
  [Part material]   PBT+GF40%



OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854



  [Mold surface]:
  ① A surface polished to 1000# sandpaper
  ② Secondary surface EDM with VDI21# (Makino)
  The mold surface has high glossiness and smoothness, the part surface is smoother,

  w/o flow marks and gas marks, fine surface with clear details



OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

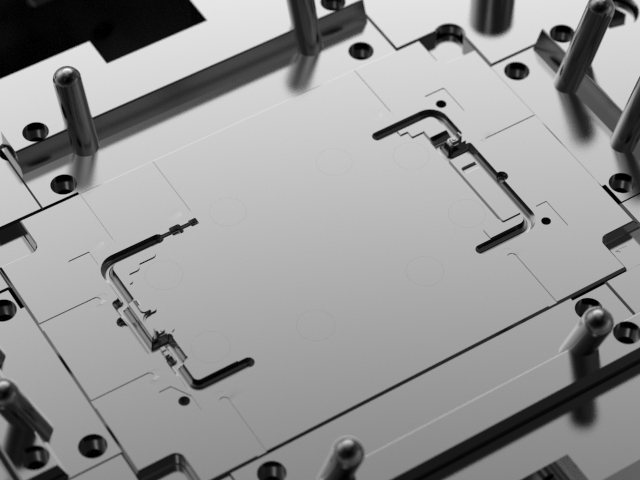

  [Steel of cavity and core]:
  Harden with 1*1/S136
  Harden the cavity and core to improve hardness, anti-wearing and anti-corrosion

  performance, and the tool life is up to 500k shots







OEM / ODM ： Hot Runner Injection Molding & Mobile Phone TP Trim (1*1) No.23854

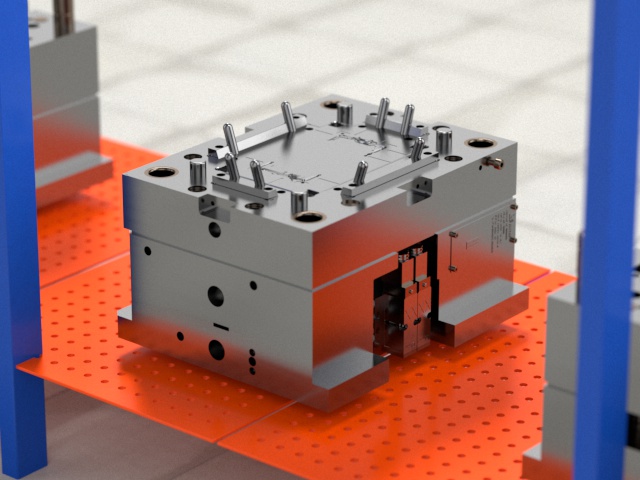

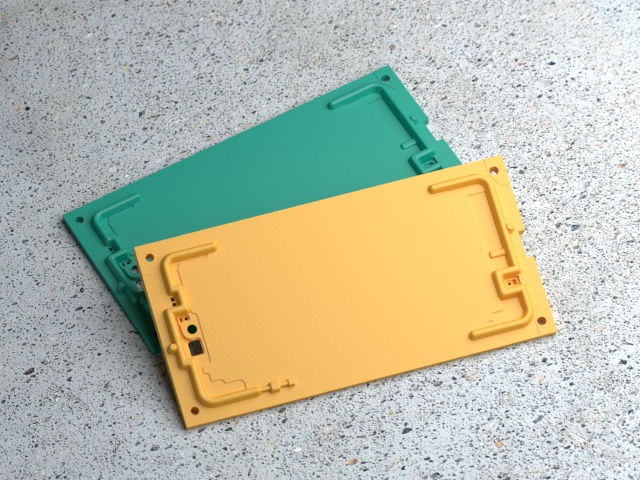

The mold net weight is 416kg, fits 140T machine. The part material is PBT+GF40%, the part

size is 164.69 X 77.42 X 6.75mm, and the part net weight is only 5g.







Display diagram
