Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 600 X 416

IMM Tonnage : 100T

Mold Weight : 635KG

Gate : Pin point gate

Type : Three-plates mold

Surface finish : SPI-A1

Standard : LKM

slides : 4

Contact Now

Transparent earphone left middle shell

No.24207



  Standard mold base

  P/N FCI3560 A80-B120-C100

  Net weight
  635kg
  Length   400   IMM tonnage
  Width   600
  Height   416

  100T



Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207



  Part material   Part size   Part weight
  PC+ABS   16.82 X 35.52 X 11.81mm   0.7g



  Tool life
  500K shots



Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207



  Gate   Type   Surface finish   Standard   Cavity   Core
  Pin point gate   Three-plates mold   A surface polished to SPI-A1   LKM   Harden (1*2/S136)







Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207







Injection/Runner Type: Cold runner

Features: 4 slides

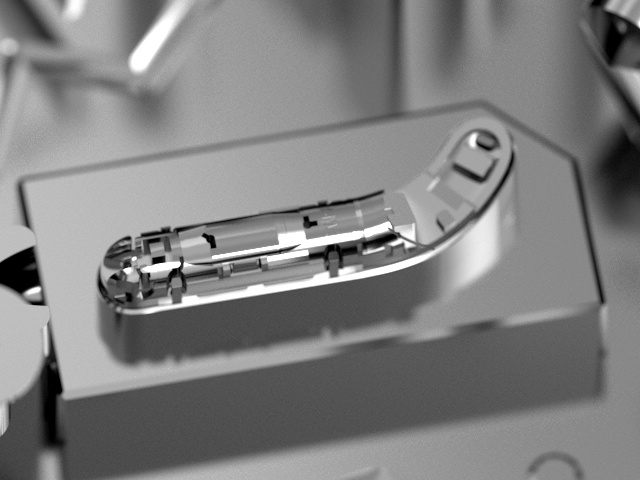

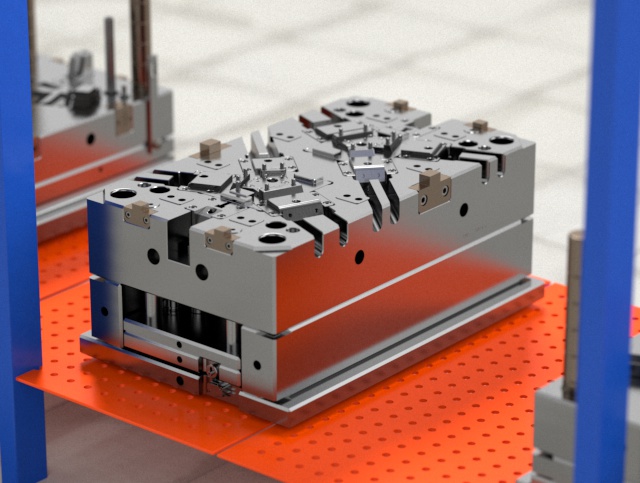

Display diagram



Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207Transparent earphone left middle shell / Cold Runner / Three-plates mold No.24207
