OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204

Name: OEM ODM Consumer Electronics Molds Headset Charging Box Light Guide 116 No24204
Brand: Chitwing
Price: 1 USD

Buy cheap OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204 product

Brand Name : Chitwing

Model Number : Earphone Charging Case

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250 X 250 X 251

IMM Tonnage : 80 T

Mold Weight : 93KG

Part material : Translucent PC

Standard : LKM

Tool life : 500k shots

Runner Type : Cold runner

Mold type : Consumer Electronics Molds

Contact Now

Earphone Charging

Box Light Guide (1*16)

No.24204

Injection/runner type	Cold runner
Part material	Translucent PC
Standard	LKM
Tool life	500k shots

OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204

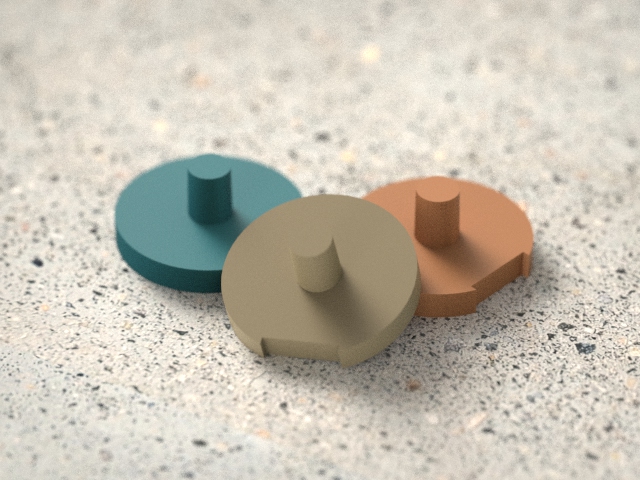

The mold net weight is 93kg, and fit 80T machine; the part size is (L)9.6*(W)8.6*(H)5.2mm

and the part weight is 0.2g

OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204

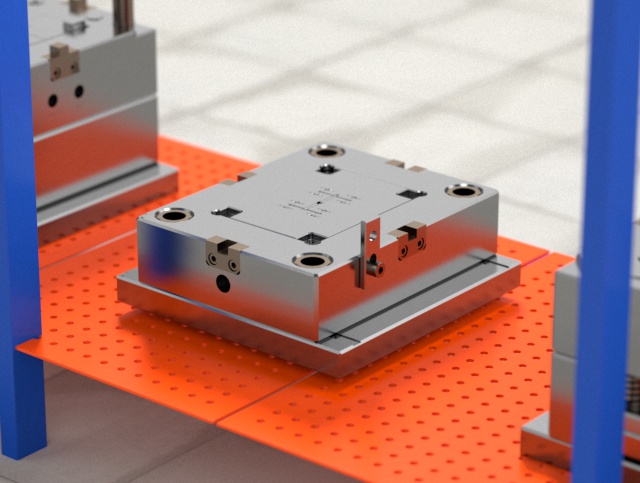

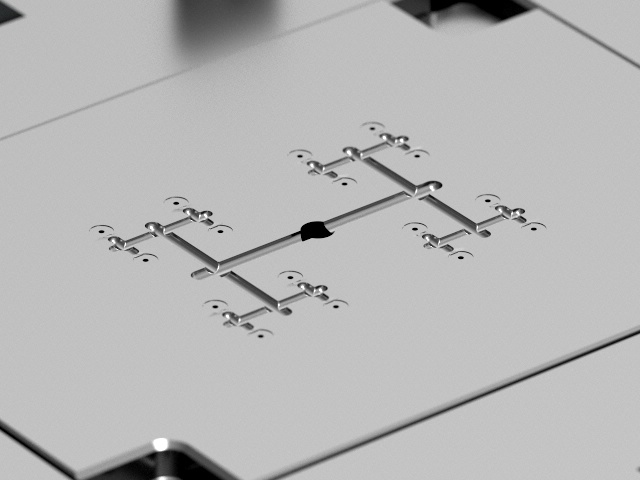

Mold size: 250 X 250 X 251mm, standard mold base, side gate; the mold is made of steel with

high purity, and the cavity and core surface has smooth surface with no pits; the A surface polished

to SPI-A1, the inner surface EDM with VDI21# (Makino); harden the cavity and the core with

1*16/S136 to have higher hardness and anti-wearing performance, with stable wall thickness

and stable internal pressure

OEM / ODM Consumer Electronics Molds / Headset Charging Box Light Guide (1*16) No.24204

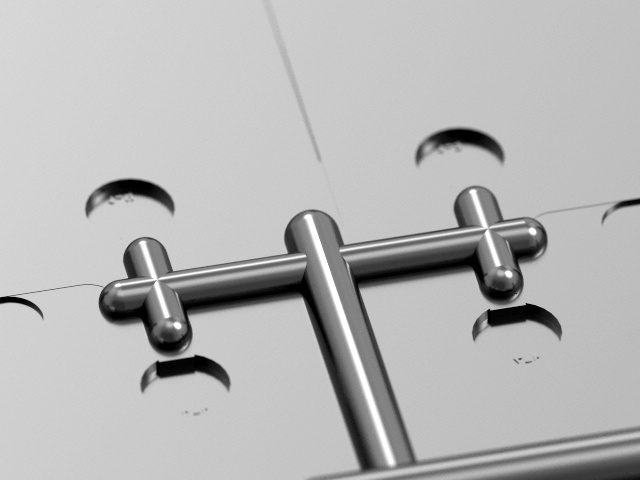

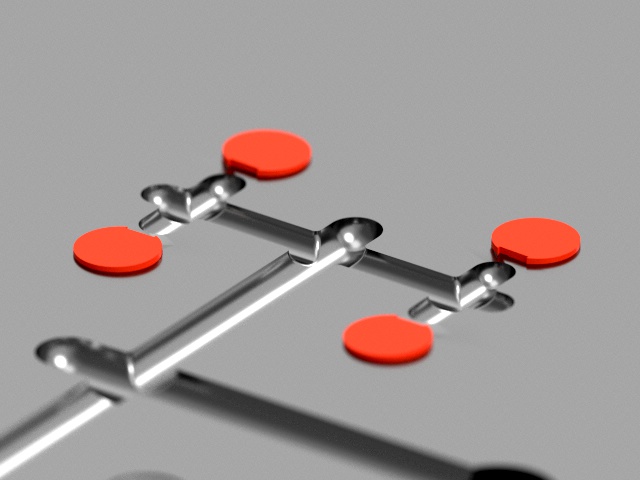

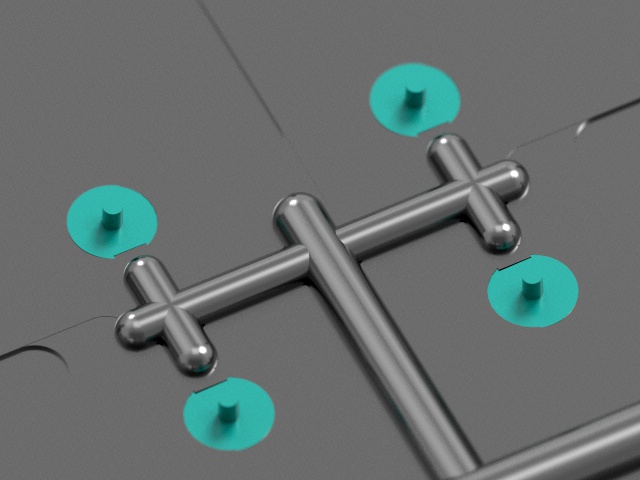

Features: Cavity ejection pin

Display diagram

Product Tags:

500k Shots Clear Plastic Injection Molding

LKM Clear Plastic Injection Molding

80 T two plate injection mould
