OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450.000 X 550.000 X 559.000

IMM Tonnage : 220T

Mold Weight : 871kg

Steel of cavity & core : 1*2/S136

Slide & Lifter : 4/13

Standard : LKM

Contact Now

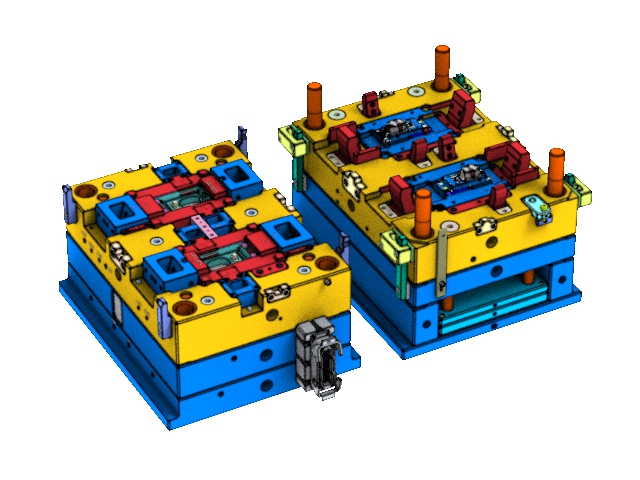

Transparent On-board Rear Housing (1*2)

No.23909



  Mold base P/N: DI4055

  110100100

Mold

net

weight

IMM

Tonnage
  Size:
  Length   450
  Width   550 871kg 220T
  Height   559
  [Standard] - LKM



OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909



  [Slide]: 2
  [Lifter[: 13
  [Type]: Three-plates mold
  [Gate]: Side gate
  [Part material]: PC
  [Injection/runner type]:

  Hot runner

   [Steel of cavity & core]
  Harden (1*2/S136)

  Long tool life(500k shots)
  with harden cavity/core block, with good

  hardness, strength, anit-wearing,

  anti-corrosion.
  [Surface finish]   ① A surface laser with VDI24#
  ② A surface EDM with SPI-A2



OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909



cost effective with cold sprue free runner

(hot spure to 3 plates cold runnner, without cold spure)



OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909



  Part size:   Net weight
  Length 115.95   Height 37.15 19.95g
  Width 60.93







OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909







Display diagram





OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909OEM / ODM ： Hot Runner Injection Molding & Transparent On-board Rear Housing (1*2) No.23909
