Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 350.000 X 331.000

Mold Weight : 254kg

Features : 4 slides and 1 lifter

Surface finish : VDI27#

Design software : 3D-UG 4.0/ 2D-CAD

Mould life : ≥500000 shots

Contact Now

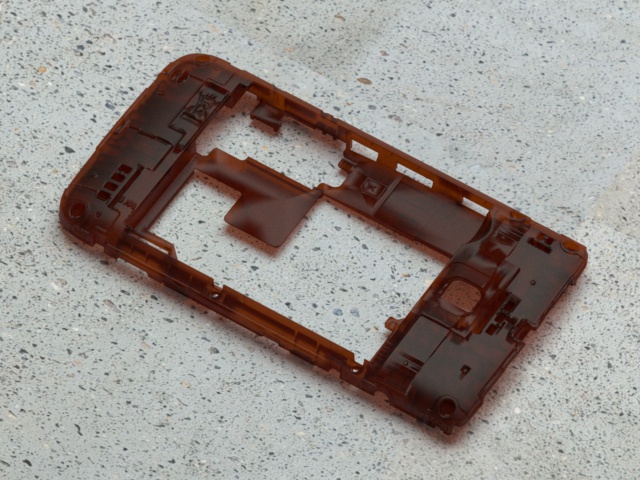

Transparent Clamshell Phone Back Cover (1*1)

No.21872



  Mold size   Part size
Length Width Height Length Width Height
350 350 331 53.62 8.09 101.85



Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872



  ☆  [Mold base P/N]:
  - FCI3035 609		   ☆  [Part weight]:
  - 8.3g
  ☆  [Mold weight]:
 - 254kg		   ☆  [IMM Tonnage]:
  - 110T



Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872



  ☆  [Standard]:
  - LKM		   ☆  [Steel of cavity & core]:
  - Harden (1*1/S136)
  ☆  [Type]:
  - Three-plates mold		   ☆  [Injection/runner type]:
  - Cold runner
  ☆  [Gate]:
  - Pin point gate		   ☆  [Surface finish]:
  - Critical surface EDM with VDI27#
  ☆  [Part material]:
  - PC		   ☆  [Features]:
  - 4 slides and 1 lifter







Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872





  [*Standard]:
  - LKM		   [*Steel of cavity & core]:
  - Harden (1*1/S136)
  [*Type]:
  - Three-plates mold		   [*Injection/runner type]:
  - Cold runner
  [*Gate]:
  - Pin point gate		   [*Surface finish]:
  - Critical surface EDM with VDI27#
  [*Part material]:
  - PC		   [*Features]:
  - 4 slides and 1 lifter

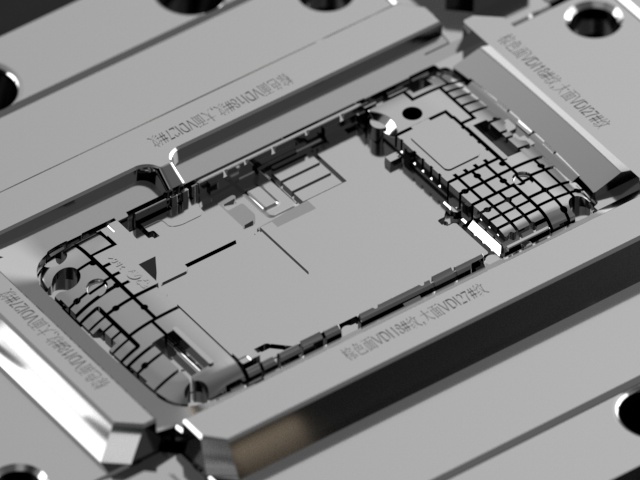

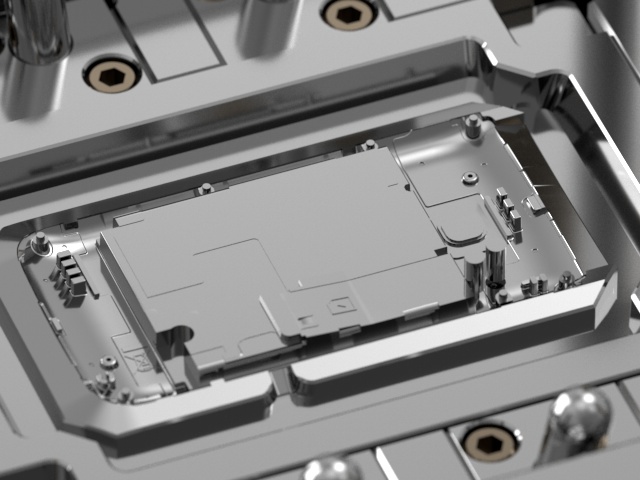

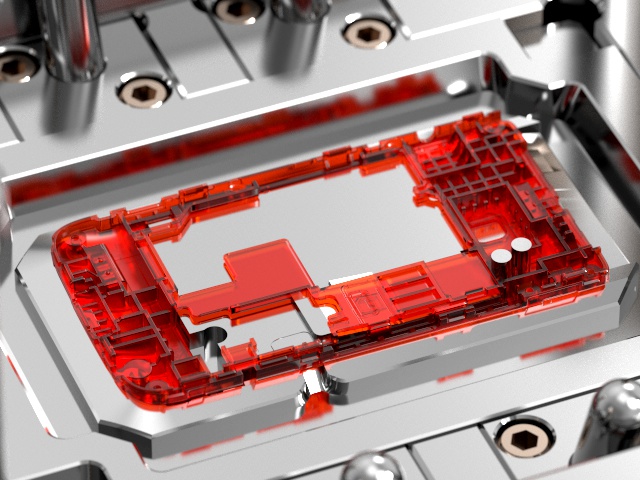

Display diagram



Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872Transparent Clamshell Phone Back Cover (1*1) / Three-plates mold / Cold runner No.21872
