OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 450.00 X 450.00 X 496.00(mm)

IMM Tonnage : 180(T)

Mold Weight : 706.29(KG)

Slide per cavity : 4

Lifters per cavity : 4

Product material : PC+10%GF

Injection/runner type : Hot runner turns to cold runner

Gate : pin point gate

mold type : Consumer electronics molds

Contact Now

Front cover(1*1)

No.24315-A

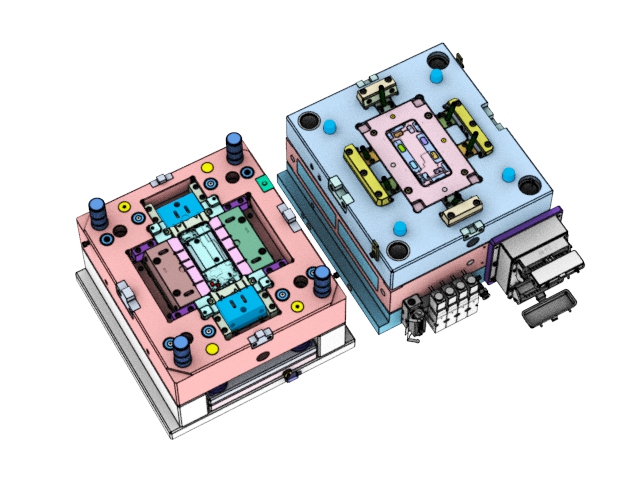

Mold details



  Standard: LKM
  L   450
  W   450
  H   496



OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A



  Two-plates mold   Material   Net weight
  Pin point gate   Cavity   Harden with S136   706.29KG
  Core   Harden with S136



Service life up to 500k shots



OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A



The mold with hot runner turns to cold runner, with hot sprue to cold runner feeds multiple cavities (not material loss on sprue); mold surface etch to ensure mold part are anti-skid, anti-turning with good handfeel Fit 180T machine



Slide Lifter
4 4









OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A

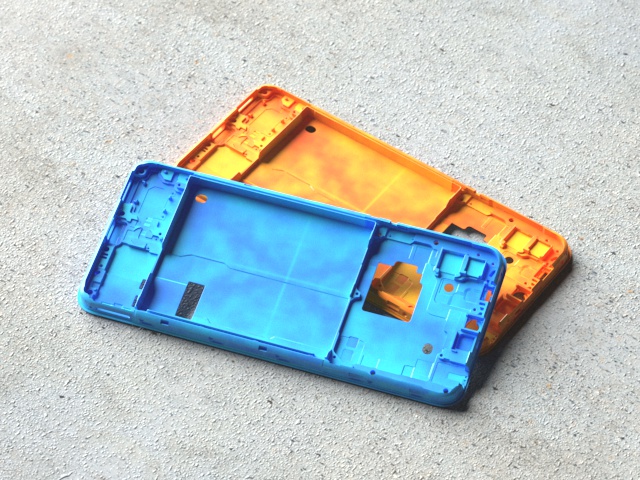

Part details



  Part material   PC+10%GF   Net weight
  L:164.26
  W:75   7.5g
  H:7.62

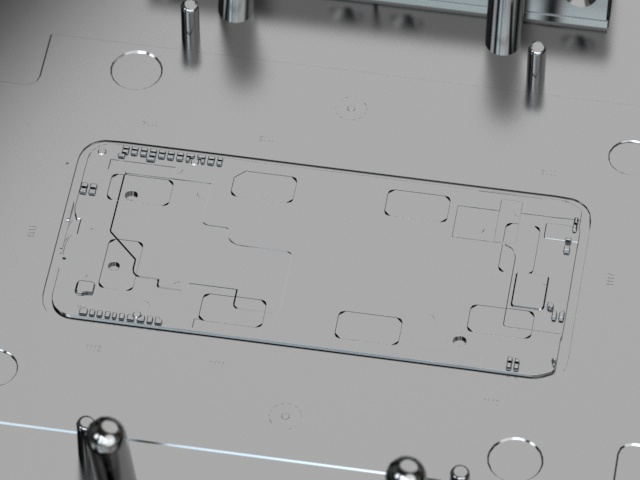

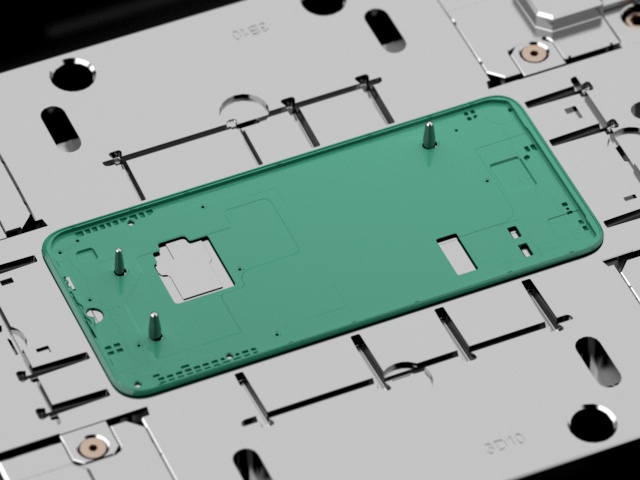

Display diagram



OEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-AOEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-AOEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-AOEM / ODM ：Custom consumer enclosure molds / Front cover（1*1）No.24315-A
