OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B

Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 326(mm)

IMM Tonnage : 130(T)

Mold Weight : 180(KG)

Part material : PC+ABS

Mold base : Standard (CI2530.7011080)

Cavity : Harden

Core : Harden

Features : 5 lifters

Contact Now

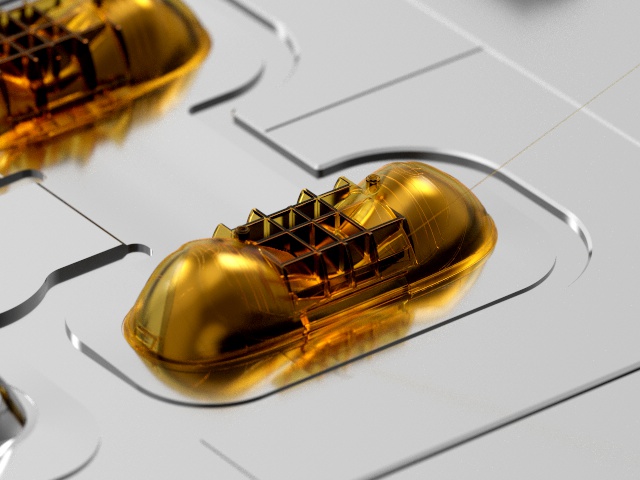

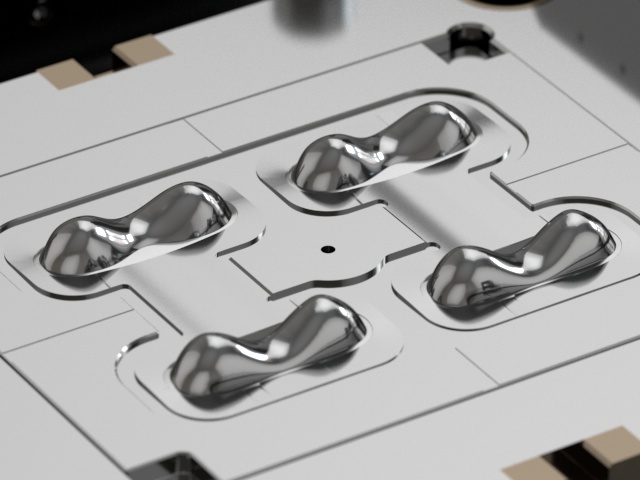

Upper inner cover of

earphone charging box (1*4)

No.24196-B



  [Mold size]   [Mold base P/N]
Length Width Height   FCI3035 609080
350 350 331
  [Standard]: LKM   [Type]: Three-plates mold   [Gate]: Pin point gate
  [Mold net weight]:
  - 254kg
  [Steel of cavity & core]:
  - Harden (1*1/S136)
  [IMM Tonnage]:
  - 110T
  [Part material]:
  - PC
  [Part weight]:
  - 8.3g
  [Part size]:
  - 53.62X8.09X101.85mm
  Injection/runner type: Cold runner
  [Surface finish]:
  - A surface EDM with VDI27#
  [Features]:
  - 4 x slides and 1 x lifter



OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B

OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B



OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B











Display diagram



OEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-BOEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-BOEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-BOEM / ODM : Precision Injection Molding & Earphone Charging Box Upper Inner Cover 1x4 No.24196-B
