Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Design software : 3D-UG 4.0/ 2D-CAD

Mould life : ≥500000 shots

Runner : Cold runner

Part size : 26.39 X 30.51 X 4.00mm

Part weight : 0.45g

Contact Now

Medical Instruments PN-1913 (1*4)

No.21069





  [Standard]: LKM
  [Mold Net Weight]: 94 kg
  [Standard mold base P/N]:

  CI2025.507070



   Length   Width   Height
  250   250   251



Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069



[Part material]: PA12+15%GF

[Part weight]: 0.45g
[Part size]: 26.39 X 30.51 X 4.00mm



Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069



  [Features]: Auxiliary ejection
  [Gate]: side gate
  [Type]: Two-plates mold
  [IMM tonnage]: 100T

  This is a two-plates mold with side gate for easy filling. Mold

  surface polished to SPI-B1 to improve the glossiness, w/o pits

  and burrs, so that the molded parts have stable quality and

  smooth surface, w/o sticking with the mold. Harden the cavity

  & core with 1*4/S136 to improve the hardness, anti-corrosion

  and anti-wearing performance







Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069

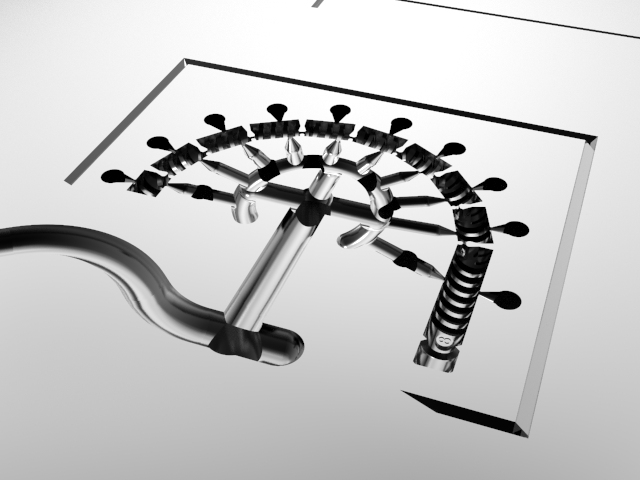

Display diagram



Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069Medical Instrument PN-1913 (1*4) / Cold runner / side feed No.21069
