Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 450.000 X 356.000

IMM Tonnage : 130T

Mold Weight : 310kg

Injection/runner type : Hot runner

slide : 1

Part weight : 7.3g

Part size : 43.75 X 85.49 X 14.88mm

Type : Two-plates mold

Steel of cavity and core : harden with 1*2/S136

Contact Now

Medical Instrument PN-2055 (1*2)

No.21061



  Standard mold base P/N: CI2545.609080.
  Size: (L)300 X (W)450 X (H)356mm

  Net weight: 310 kg

   LKM standard
  Gate: cashew gate
  Type: Two-plates mold

  Steel of cavity and core:

  harden with 1*2/S136
  Surface finish:
  ⑴ MT11010
  (2) Partial surfaces polished to SPI-A2
  ⑶ Partial surfaces polished to SPI-B2

  Greatly improve surface hardness,

  anti-wearing performance and smoothness;

  parts not sticking with the mold, with smooth

  surface free of burrs, flow mark and gas

  marks, more aesthetic
  Injection/runner type: Hot runner   Features: 1 slide



Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061



△ IMM tonnage: 130T

△ Part material: PC/Part weight: 7.3g/Part size: 43.75 X 85.49 X 14.88mm









Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061

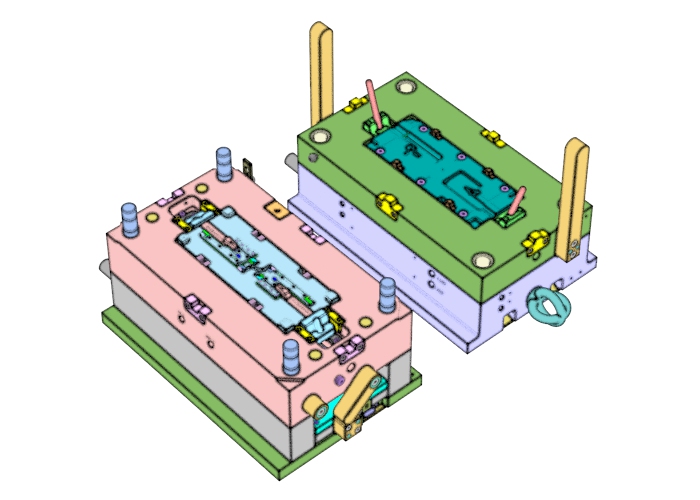

Display diagram



Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061
