Name: Medical Instrument PN1797 14 Twoplates mold Cold runner No21065
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Design software : 3D:UG 4.0, 2D:CAD

Mould life : ≥500000 shots

Surface finish : SPI B-2

Part material : PC

Part size : 8.24 X 8.21 X 2.72 mm

Part weight : 0.22g

Contact Now

Medical Instrument PN-1797 (1*4)

No.21065

(1) LKM standard
(2) Standard mold base P/N: CI2025.507070
L250mm | W250mm | H251mm | ☆ Tool life: 500k shots

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

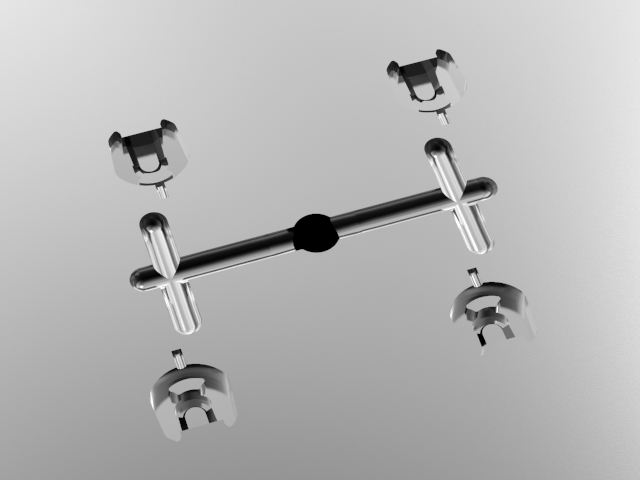

☆ Two-plates mold ☆ Cashew gate

This is a two-plates mold with a side gate and cashew gate, part automatically cut off

when opening mold; with short cycle time, easy filling, smooth demolding, low cost,

meeting customers' cost-effective requirements

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

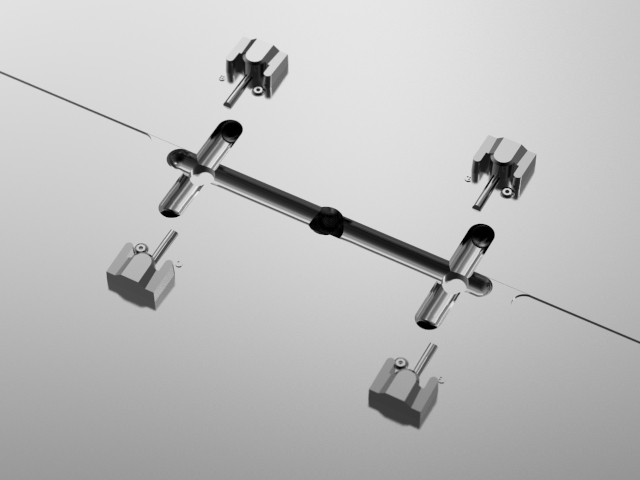

☆ Injection/runner type -- cold runner
☆ IMM tonnage: 100(T)
☆ Mold net weight: 94 (kg)
☆ Part material/weight/size: PC/0.22g/8.24 X 8.21 X 2.72mm

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

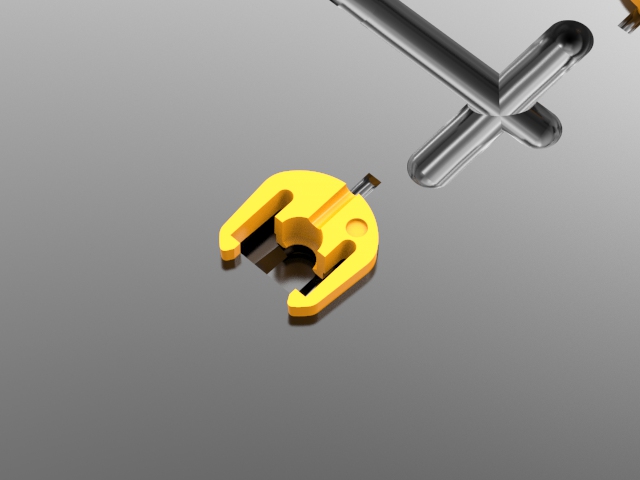

☆ Surface finish -- Polished to SPI B-2
☆ Steel of cavity and core: harden with 1*4/S136

Medical Instrument PN-1797 (1*4) / Two-plates mold / Cold runner No.21065

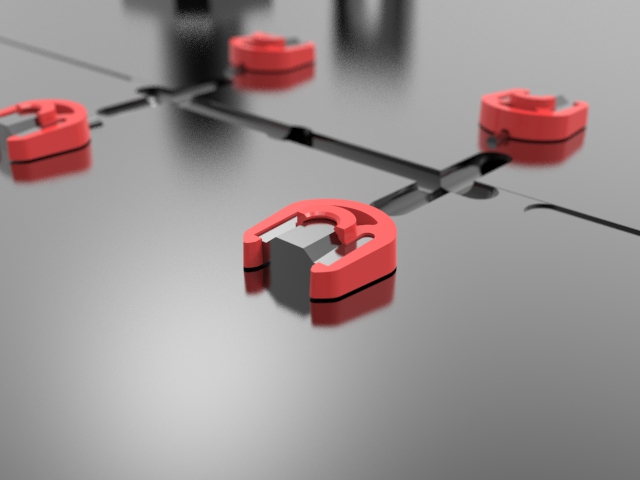

Greatly improve the surface smoothness,

anti-wearing and anti-corrosion performance

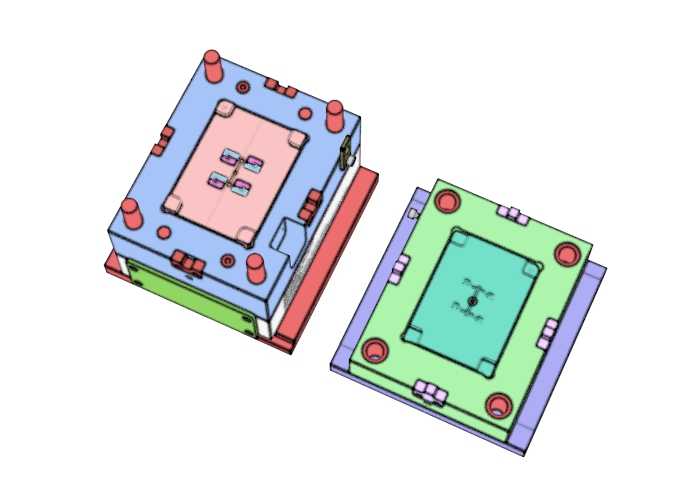

Display diagram
